Belt Trackers · Trough / Carry-Side · Zone 02
Carry-side drift begins near loading — material position, belt dynamics and trough geometry push the belt off centre. Trough trackers correct it while the belt is carrying, before it becomes edge damage, spillage and downstream instability.
01 / Apex advantages
What makes the Apex different.
Apex is Tru-Trac's next-generation trough tracker — engineered for carry-side applications where standard tracking is limited by space, duty, adjustment, or operating severity.
- 01
Fast, reactive correction
Enhanced tapered rollers and centre pivot deliver fast, continuous tracking on loaded or unloaded belts.
- 02
Compact, flat-packed design
Fits inside hoods and tripper cars; easy to handle and install.
- 03
Adjustable troughing angle 0–60°
Wing rollers and troughing angle adjust to suit the application.
- 04
Longer life
Custom rubber lagging and premium Tru-Trac® HDPE centre rolls extend tracker life and lower cost of ownership.
- 05
Patented geometry
Cantilevered, adjustable-angle wing rolls with an optimised centre of gravity for stability and sensitivity.
02 / How it works
Mechanical, continuous, position-specific.
Differential roll speed triggers the pivot, steering the belt back to centre. Once aligned, the tracker resets to neutral. No power, no sensors, no routine manual adjustment.
- 01
Reacts to drift, not damage
The tapered wing rollers activate immediately as the belt moves off centre, so there's no 90° contact with the belt edges.
- 02
Mechanical and continuous
Continuous correction through controlled tracker geometry; bearings are sealed and maintenance-free.
- 03
Geometry-driven
Tapers compatible with 35° and 45° troughing steer the belt back and stabilise it before downstream damage compounds.
- 04
Position-specific
Trough (carry-side) trackers are engineered separately from return-side architectures.
- 05
Selection by operating envelope
Belt width, speed, class, tension, thickness, trough angle, material, environment, and severity of mistracking.

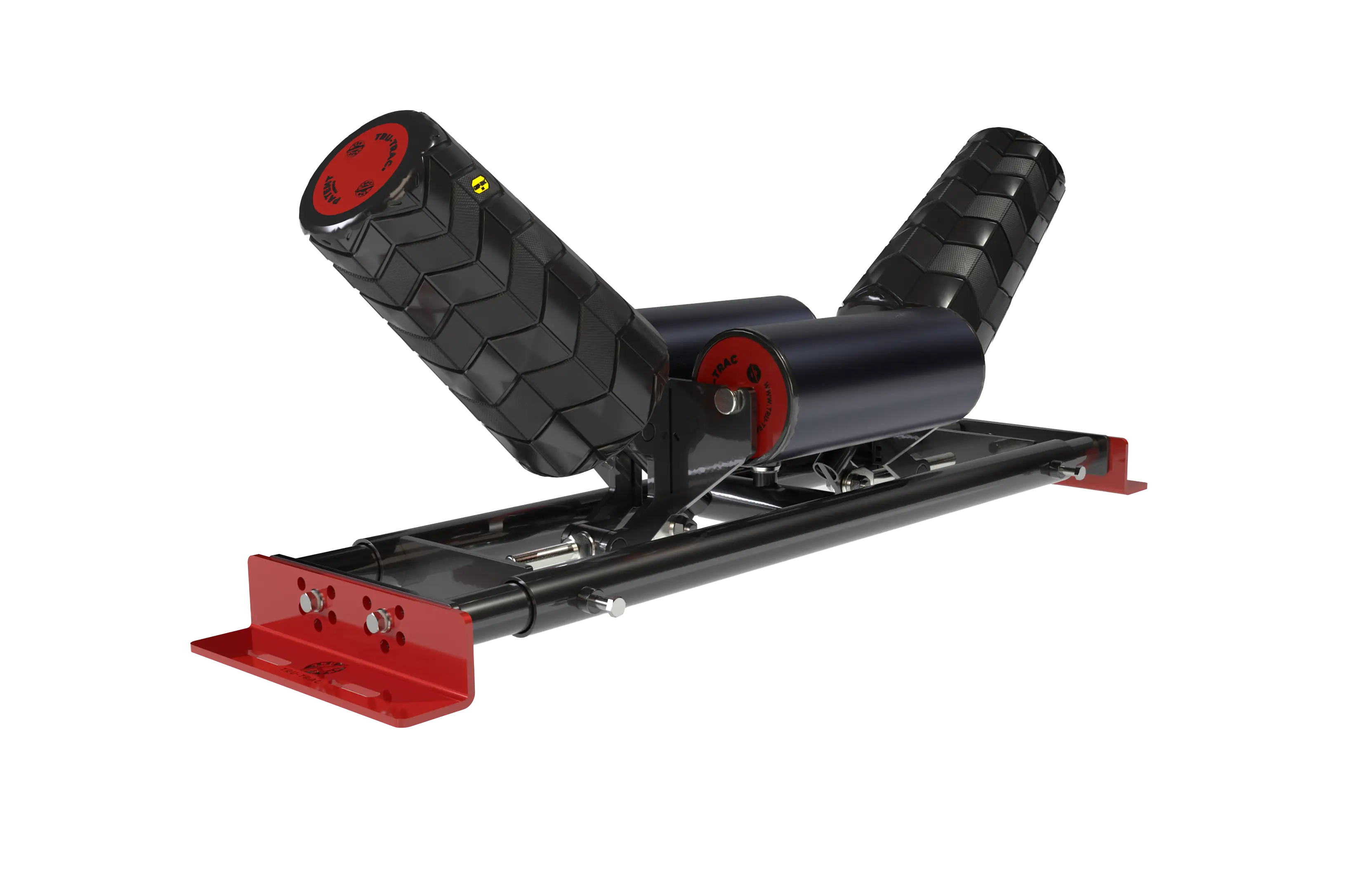

03 / Apex architecture
The architecture, up close.
Apex combines adjustable wing roller geometry, an enhanced centre pivot, and compact mounting to deliver controlled mechanical correction in demanding conveyor applications.
- 01
Enhanced centre pivot
Reactive tracking response; heavy-duty pivot for instant activation.
- 02
Premium HDPE centre rolls
Stable belt contact and long operating life.
- 03
Cantilevered tapered wing rolls
Guide the belt back through controlled geometry, with improved sealing.
- 04
Superior traction, advanced rubber lagging
Grip-Trac® profile for traction and abrasion resistance.
- 05
Versatile mounting bracket
Installs across constrained structures.
- 06
Telescopic adjustable base + troughing-angle mechanism
Commission the trough angle (0–60°) to suit the conveyor.
Architecture · up close
04 / The range
The carry-side range, by duty.
Specs from the 2025 Fifth Edition catalogue. Engineering review confirms final selection.
Apex Trough Tracker Series

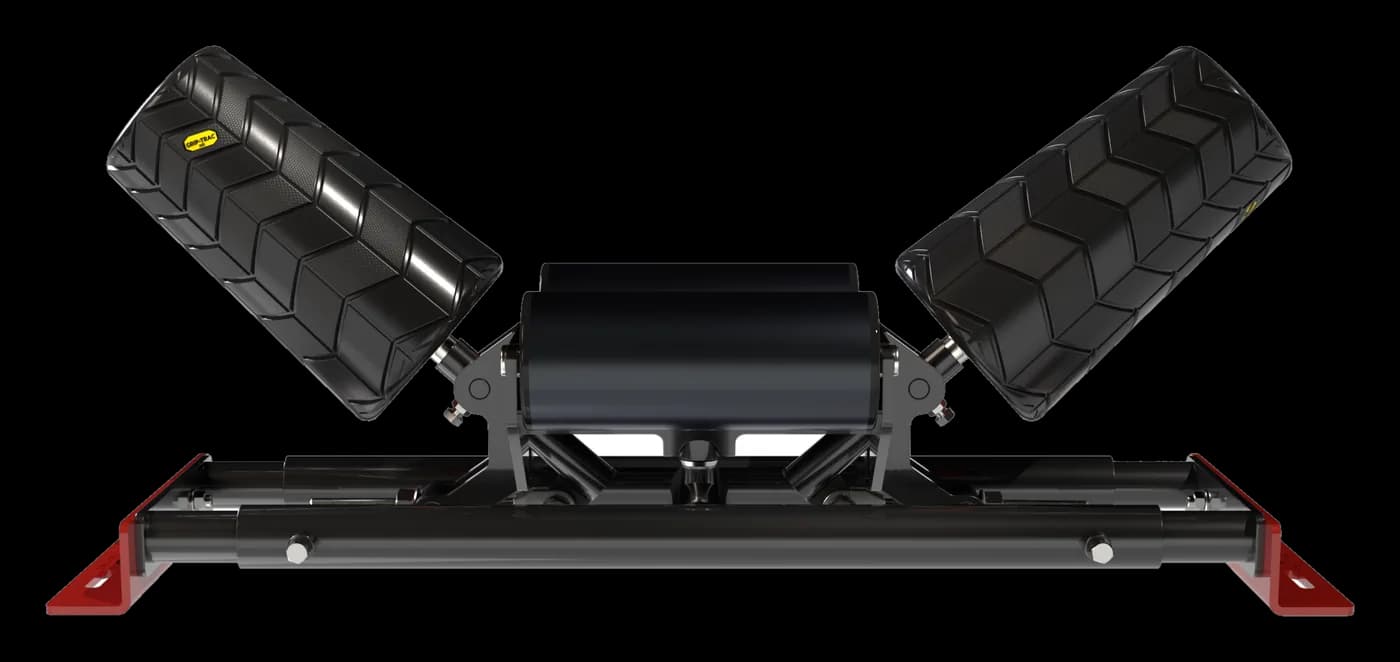

Apex Trough Tracker — Standard Duty
Model code: TTASD
- Belt Widths: 450–1200 mm (18–48")
- Application Range: General-purpose conveyors carrying moderate loads at standard operating speeds.
- Optimized for belt speeds 1.0–3.5 m/s.
- Suitable for EP fabric belts (EP400–EP800) with thickness 10–18 mm.
- Belt tension: 70–140 N/mm.
- Grip-Trac® lagging: RGN / RGHA / RGFRAS / PFR.

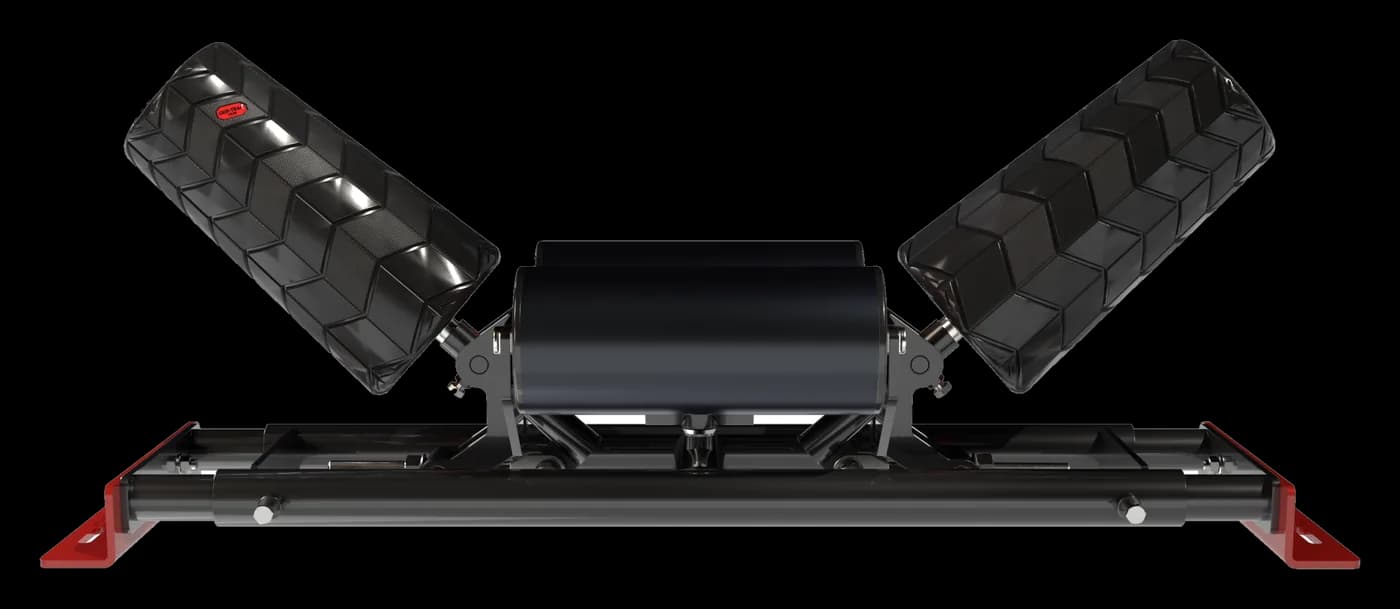

Apex Trough Tracker — Heavy Duty
Model code: TTAHD
- Belt Widths: 1050–1500 mm (42–60")
- Application Range: High-load conveyors operating under increased belt tension and moderate impact conditions.
- Designed for belt speeds >1.0–3.5 m/s.
- Belt tension: 80–160 N/mm.
- Thrust + deep-groove bearing system supporting axial and radial loads.
- Grip-Trac® lagging: RGN / RGHA / RGFRAS / PFR.
Apex Trough Tracker — X-Heavy Duty
Model code: TTAXHD
- Belt Widths: 1200–2100 mm (48–84")
- Application Range: Severe-duty carry-side conveyors at higher tension and speed.
- Designed for belt speeds 3.5–5.0 m/s.
- Grip-Trac® lagging: RGN / RGHA / RGFRAS / PFR.

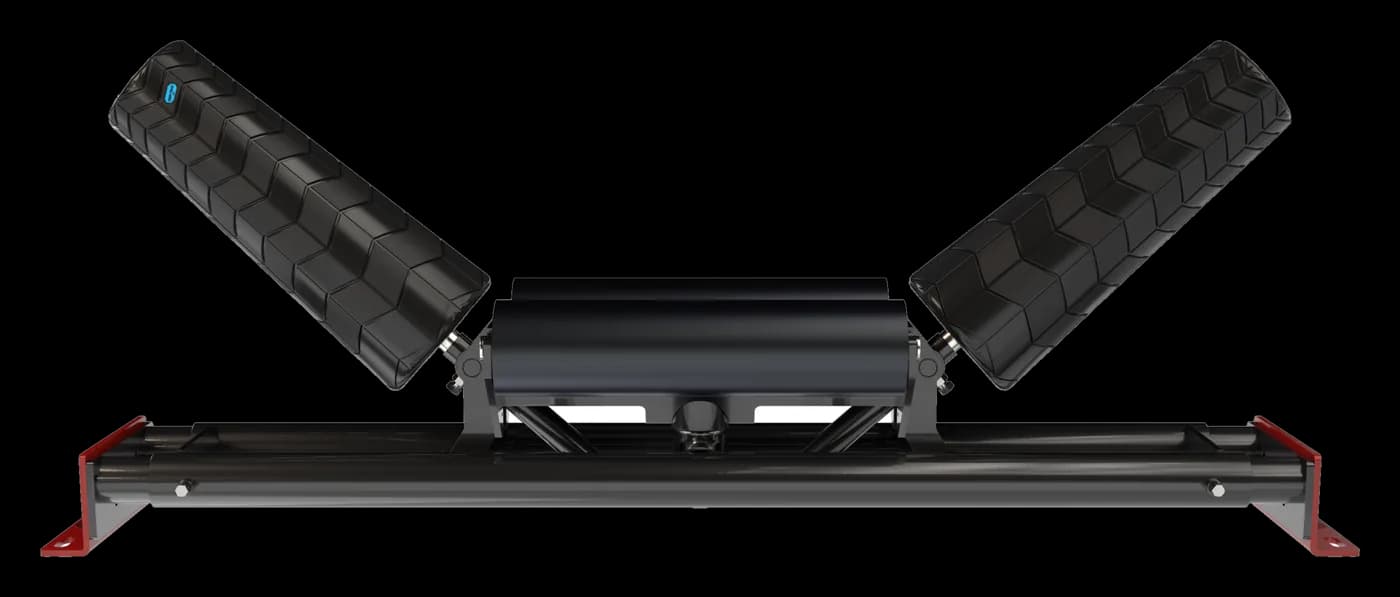

Apex Trough Tracker — Extra Heavy Duty
Model code: TTAEXHD
- Belt Widths: 1500–3000 mm (60–120")
- Application Range: Ultra high-tension, high-throughput conveyors where continuous duty and extreme belt loads demand maximum construction strength.
- Rated for belt speeds 5.0–10.0 m/s.
- Ultra-heavy pivot housing with dual thrust and spherical bearing arrangement.
- Fully sealed bearings rated for high-temperature, abrasive and corrosive environments; wear-life indicators.
Apex Trough Tracker — Ultra Heavy Duty
Model code: TTAUHD
- Belt Widths: 1500–3000 mm (60–120")
- Application Range: The most extreme continuous-duty, high-tension conveyors.
- Belt speeds: <10.0 m/s (UHD).
- Grip-Trac® lagging (smooth rubber or PU above 2100 mm).
NR Trough Trackers

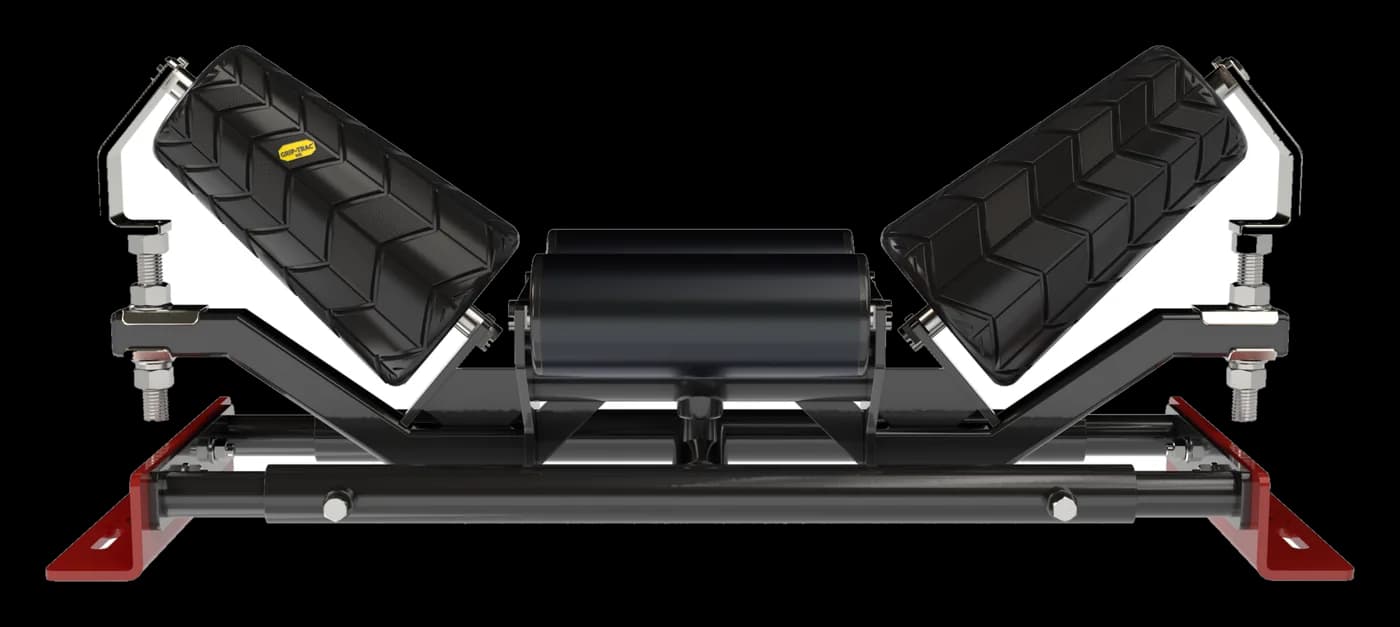

NR Standard Trough Tracker
Model code: TTNRSD
- Belt Widths: 450–1200 mm.
- Belt Thickness: <15 mm.
- Belt Speeds: <3.5 m/s.
- Bearings: standard deep-groove roller bearings.
- The original Trough Tracker, pioneered and patented by Tru-Trac®; excellent on reversing belts.

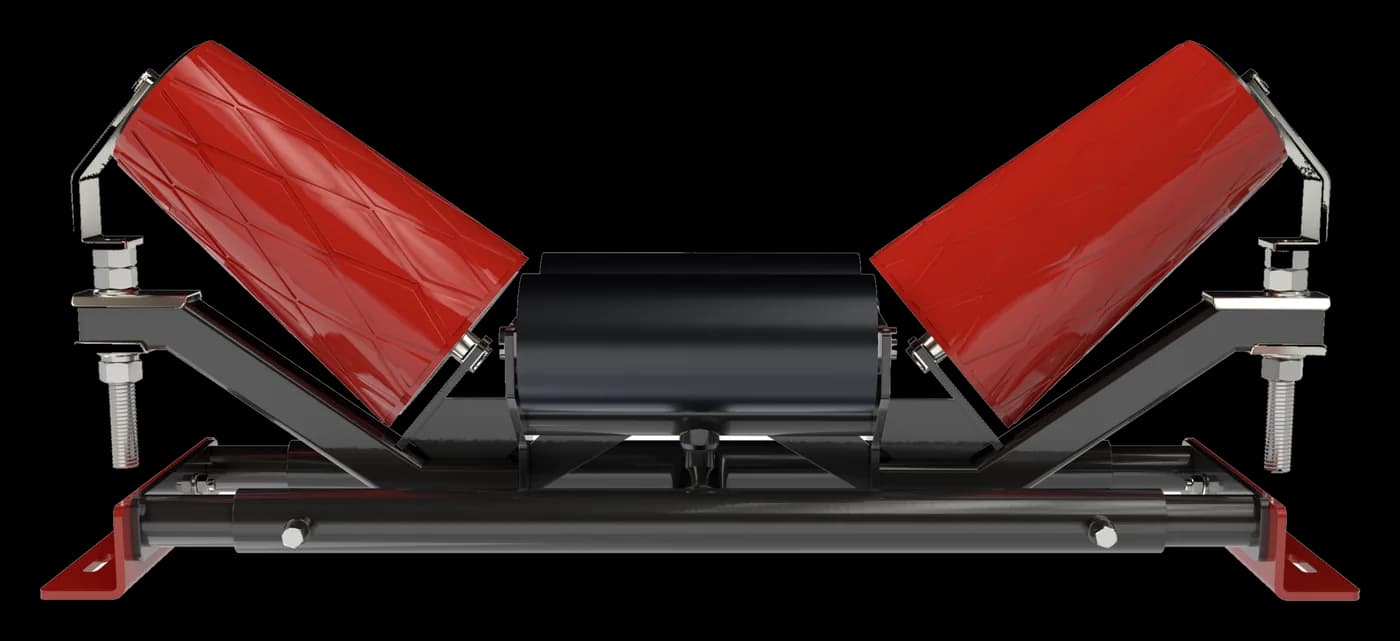

NR Heavy Duty Trough Tracker
Model code: TTNRHD
- Belt Widths: 900–1500 mm.
- Belt Thickness: <20 mm.
- Belt Speeds: 1.0–3.5 m/s.
- Bearings: spherical bearings in wing rollers, deep-groove roller bearings in centre rolls.
- Reinforced for heavier-duty applications; excellent on reversing belts.

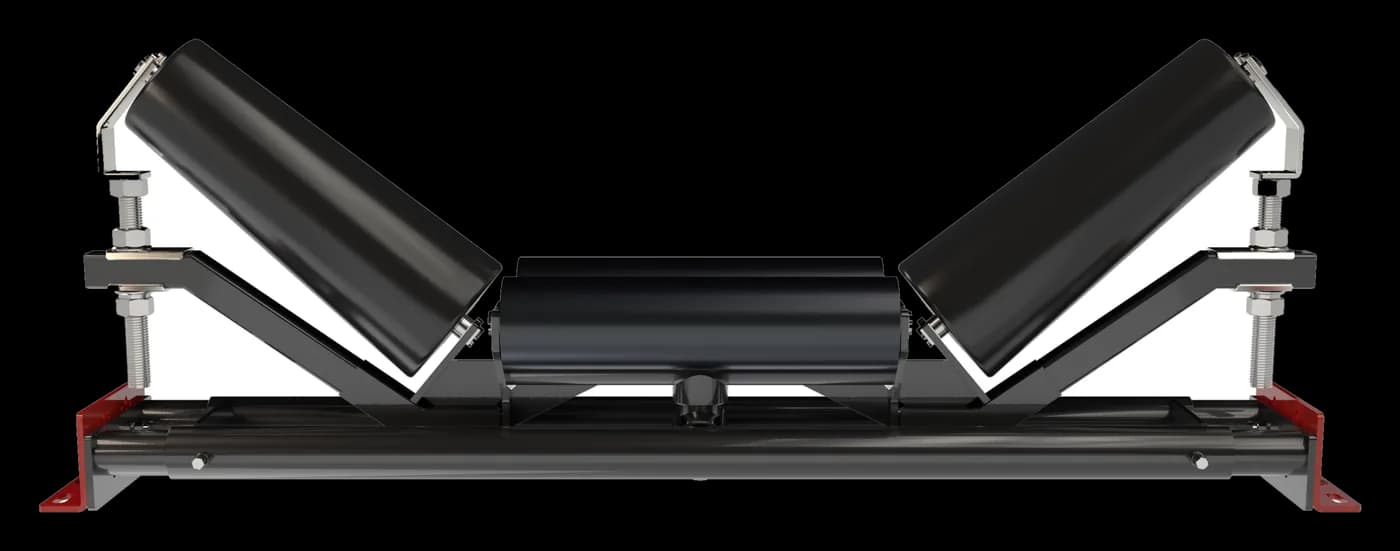

NR Extra Heavy Duty Trough Tracker
Model code: TTNREXHD
- Belt Widths: 1350–2600 mm.
- Belt Thickness: >30 mm.
- Belt Speeds: 5–10 m/s (Ultra Heavy Duty <10 m/s).
- Bearings: spherical roller bearings.
- Additional reinforcement for demanding applications; excellent on reversing belts.

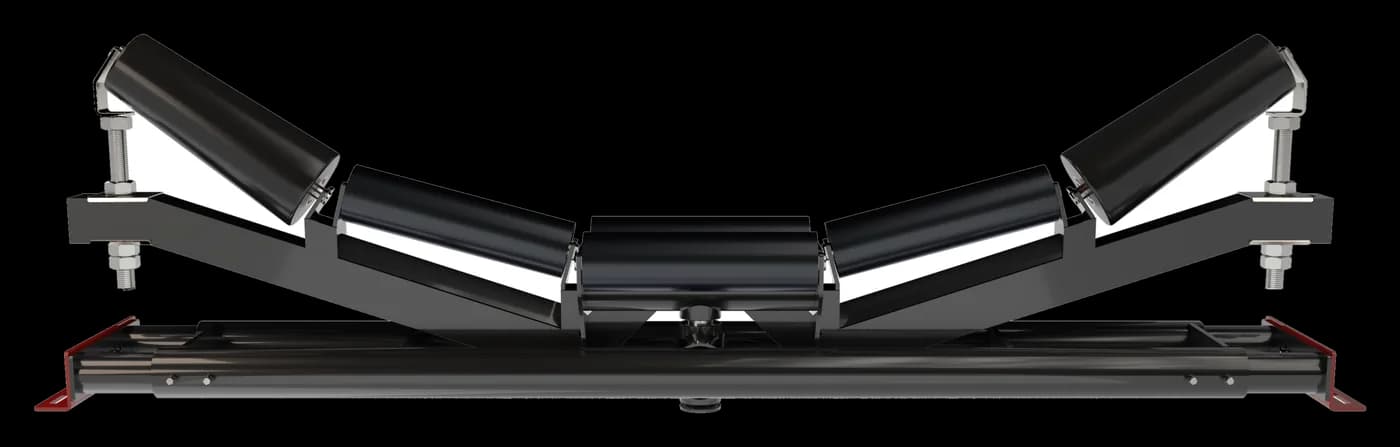

NR Super Extra Heavy Duty Trough Tracker
Model code: TTNRSEXHD
- Belt Widths: 2900–3000 mm.
- Manually adjustable wing-roller angle; compact design.
- Upgraded premium rubber lagging on wing rolls.
- Individually replaceable taper wing and centre rollers.
- Excellent on reversing belts in both directions.
Load & Speciality Trough Trackers

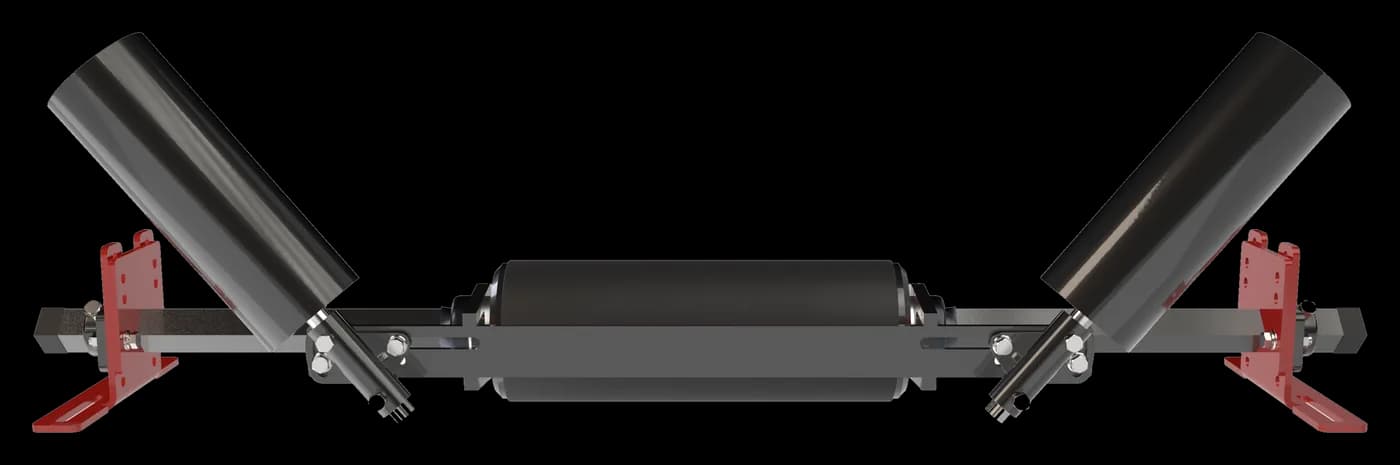

Load Trough Tracker
Model code: TTLDSD
- Belt Widths: 900–1500 mm (36–60").
- Belt Speeds: >1.0–3.5 m/s.
- Trough angle: 25–50°.
- Rolls: RNA centre roll with steel wing rolls.
- Compact height fits above decking plates.

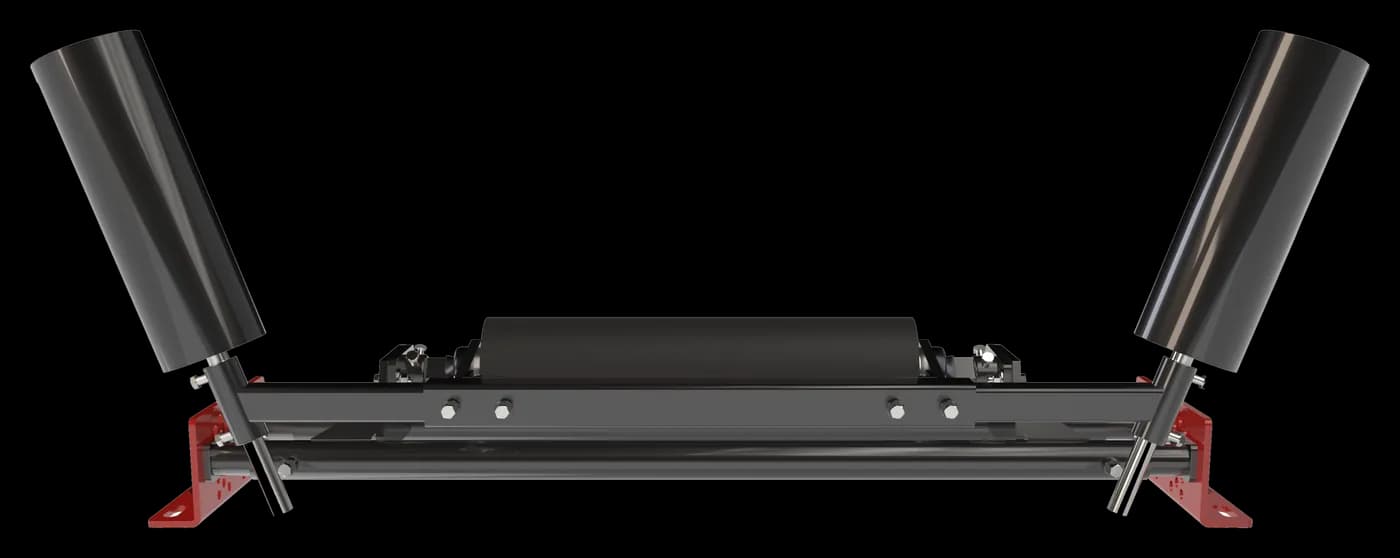

DD Trough Tracker
Model code: TTDD
- Belt Widths: 1350–2100 mm.
- Belt Speeds: 1.0–3.5 m/s (accommodates high speeds exceeding 4 m/s).
- Wing rollers fixed at 70° — no 90° contact with the belt edges.
- Bearings: standard, or thrust + roller configuration.
- Strengthened shaft with double-pipe base; welded steel bearing housings; steel end-cap 'flinger' seals.
Picking Trough Tracker
Model code: TTPICK
- Installed on the load-carrying side, for picking conveyor belts.
- Longer middle roller than the wing rollers.
- Available in a range of sizes and configurations.
- Easy to install and maintain.
05 / The selector
Match the trough tracker to your conveyor.
The selector returns a recommended model and duty tier from your inputs. "Engineering Review Required" is a normal outcome for borderline or high-risk applications.
