How to prevent conveyor belt rips.
Belt rips are catastrophic, expensive and largely preventable when the upstream conditions are controlled. A practical guide to the causes, the early-warning signs and the engineering controls.
Direct answer
How to prevent conveyor belt rips.
Conveyor belt rips are largely preventable through three engineering controls: containment of tramp material at the loading zone (the most common rip initiator is a piece of tramp metal or stone wedging between the belt and the head or tail pulley), inspection discipline that catches belt-edge damage and minor cuts before they propagate, and rip-prevention monitoring systems that detect early-stage damage and trigger a controlled stop before the rip becomes catastrophic. No single control eliminates rip risk completely — Rip Prevent+ is a monitoring layer, not a prevention guarantee. The practical answer is to combine upstream containment, disciplined inspection, and monitoring so that when something does go wrong, the damage is bounded.
01 / Causes
Why belts rip, ranked by frequency.
Most rips start with one of these causes. Often the failure chain includes more than one.
01
Tramp material at loading zone
Foreign objects — tramp metal, large rocks, broken equipment — enter the loading zone and become trapped between the belt and the pulley. The single most common rip initiator.
02
Unattended belt-edge damage
Edge damage that wasn't repaired propagates inward as the belt continues to operate. Eventually the damage reaches a load-bearing path and the belt fails.
03
Splice failure
An out-of-square splice or a splice with uneven elongation creates a stress concentration on every revolution. The splice eventually fails, and the failure propagates into the belt body.
04
Material entrapment at the tail pulley
Spillage or carryback that reaches the tail pulley wedges between the belt and pulley face, creating a localised cut that propagates with continued operation.
05
Belt-cover damage from chute geometry
Worn chute liners, structural projections in the belt path, or impact damage at transfer points create points of belt-cover damage that progress to rips.
02 / Risk signs
Early warning signs before the belt fails.
Rips rarely happen without warning. The earlier these signs are caught, the cheaper the response.
A
Tramp material in the load stream
Visible tramp items at upstream stockpiles, screen oversize bypassing protection, or evidence of foreign material at the discharge end.
B
Belt-edge fraying or damage
Visible edge fraying that's progressing week-on-week. Cord exposure at the edge is late-stage.
C
Linear surface cuts
Cuts on the belt cover running in the direction of travel — these are pre-rips. Repair immediately.
D
Material wedged at tail pulley
Spillage or carryback compacted around the tail pulley. The next belt revolution may wedge it.
E
Splice deformation
Visible distortion of a splice — uneven elongation, fastener wear, edge separation at the splice.
F
Unexplained belt-drift switch trips
Frequent drift-switch trips can indicate localised belt damage that's changing the belt's lateral behaviour.
03 / Detection + response
Detection sequence when a rip is suspected or in progress.
When a rip-prevention system detects damage, or when an operator spots a developing rip, the response sequence determines whether the damage is bounded or catastrophic.
- 01
Controlled stop
Stop the conveyor under controlled conditions — emergency stops can extend damage. Rip Prevent+ systems are designed to trigger controlled stops on detection.
- 02
Inspect immediately
Walk the belt while it's stopped. Locate the damage, assess its extent, photograph for the maintenance record.
- 03
Make the repair decision
Minor cuts can be repaired in-situ (edge bonding, mechanical repair). Larger damage requires belt-section replacement. Catastrophic damage requires full belt replacement.
- 04
Identify the cause before restart
If tramp material was the cause, find and remove the remaining tramp material. If the cause was upstream — chute geometry, transfer-point spillage — address the root cause before restart.
- 05
Re-verify the rip-prevention system
After any belt damage event, re-verify the rip-prevention monitoring system is operating correctly before resuming production.
04 / Products
Engineering controls that reduce rip risk.
No single product prevents all rips. The right approach combines upstream controls + monitoring.
Tramp metal detection at loading
Detects ferrous metal entering the load stream. Critical for operations where tramp metal is a known risk (mining, recycling, primary processing).
Chute and skirting design
Containment that keeps oversize material from entering the load zone reduces the population of potential rip initiators.
Belt cleaning + ploughs
Effective belt cleaning + a return-side plough at the tail pulley prevents the carryback-driven tail-pulley rip mechanism.

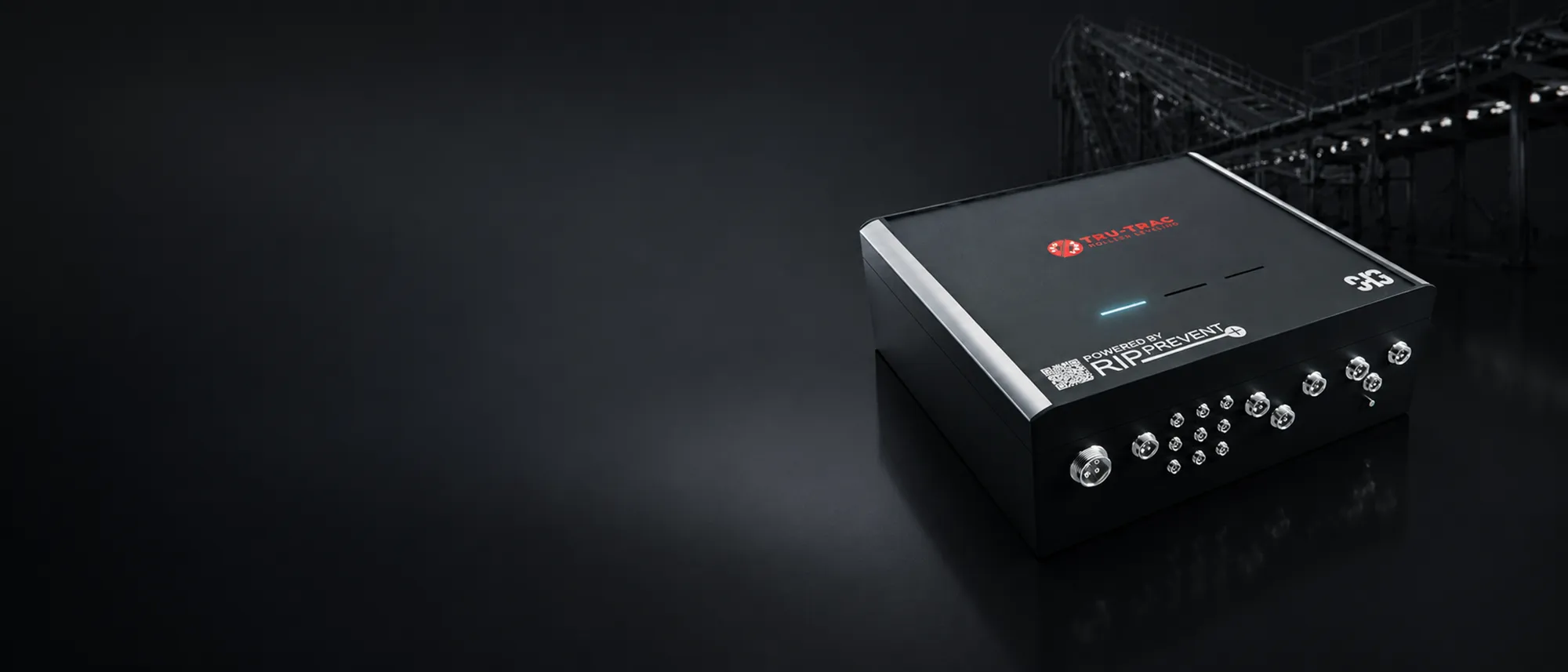

Rip Prevent+ monitoring
Detection layer that identifies early-stage belt damage and triggers a controlled stop. Final claims confirmed during specification.
Belt-edge inspection discipline
Weekly visible belt-edge inspection on production-critical conveyors catches propagating damage before it becomes catastrophic.
Splice inspection regime
Documented splice inspection cadence catches splice failures before they propagate into the belt body.
Related
Connected across the architecture.
Technical guide
Conveyor rip prevention guide
How rip detection and prevention systems work — concepts, monitoring, limitations.
Read
Zone page
Belt rip prevention zone
Where rips most often start, and what to inspect.
Read
Product
Rip Prevent+ & Protection
Tru-Trac belt rip prevention monitoring system.
Read
Product
Belt Cleaners & Scrapers
Effective belt cleaning addresses the tail-pulley rip mechanism.
Read
Take action
Discuss rip prevention
Site-led engineering review of rip risk.
Read
Frequently asked
Practical questions, answered directly.
01What causes conveyor belt rips?
The most common cause is tramp material wedging between the belt and the head or tail pulley. Other causes include unattended belt-edge damage propagating inward, splice failures, material entrapment at the tail pulley driven by carryback, and belt-cover damage from worn chute geometry. Most catastrophic rips have a documented chain of earlier warning signs that weren't addressed.02Can belt rips be prevented?
Largely yes, through three combined controls: containment of tramp material at the loading zone, disciplined belt inspection that catches edge damage and cuts before they propagate, and rip-prevention monitoring that detects early-stage damage and triggers a controlled stop. No single control eliminates rip risk completely. The right approach is to combine upstream prevention with downstream detection so when something does go wrong the damage is bounded.03Does Rip Prevent+ stop all belt rips?
No. Rip Prevent+ is a monitoring and detection layer that identifies early-stage belt damage and triggers a controlled stop before the damage becomes catastrophic. It does not prevent the upstream cause (tramp material, chute issues, splice failures). Final technical capability, detection method, response logic and system limitations are confirmed during specification with the site team.
