Apex Tracker Series
Apex Tracker Series
Fast, autonomous belt tracking for demanding conveyor duty.
Apex is Tru-Trac's next-generation tracker platform, engineered for compact installation, simplified adjustment and continuous mechanical correction in demanding conveyor environments.
02 / Apex Advantages
What makes the Apex different.
Apex is engineered for conveyor applications where standard tracking solutions are limited by space, duty, adjustment requirements or operating severity.
Apex Series · animated reference
01
Fast autonomous correction
Apex reacts as the belt begins to move off centre, helping correct belt drift before it becomes edge damage, spillage or structural contact.
02
Compact installation
The Apex architecture is suited to constrained installations, including hooded conveyors, tripper cars and structures where available space limits conventional options.
03
Simple wing roller adjustment
Adjustable wing roller geometry helps the installation team commission the tracker correctly for the conveyor application.
04
Heavy-duty lifecycle value
Premium lagging and duty-rated construction support longer service life and reduced cost of ownership in demanding applications.
05
Tiered range
Apex is selected by duty tier and operating envelope, not belt width alone. Final tier selection should be validated through the selection chart or engineering review.
03 / The tiered range
Selected by operating envelope, not by belt width alone.
STDApex Trough Tracker
Carry-side correction for standard Apex applications.
- Carry-side belt tracking
- Compact installation
- Controlled mechanical correction
View product
HDApex Trough Tracker HD
For higher-duty carry-side conveyor applications.
- Higher duty demand
- Abrasive or high-load conditions
- Engineering validated
View product

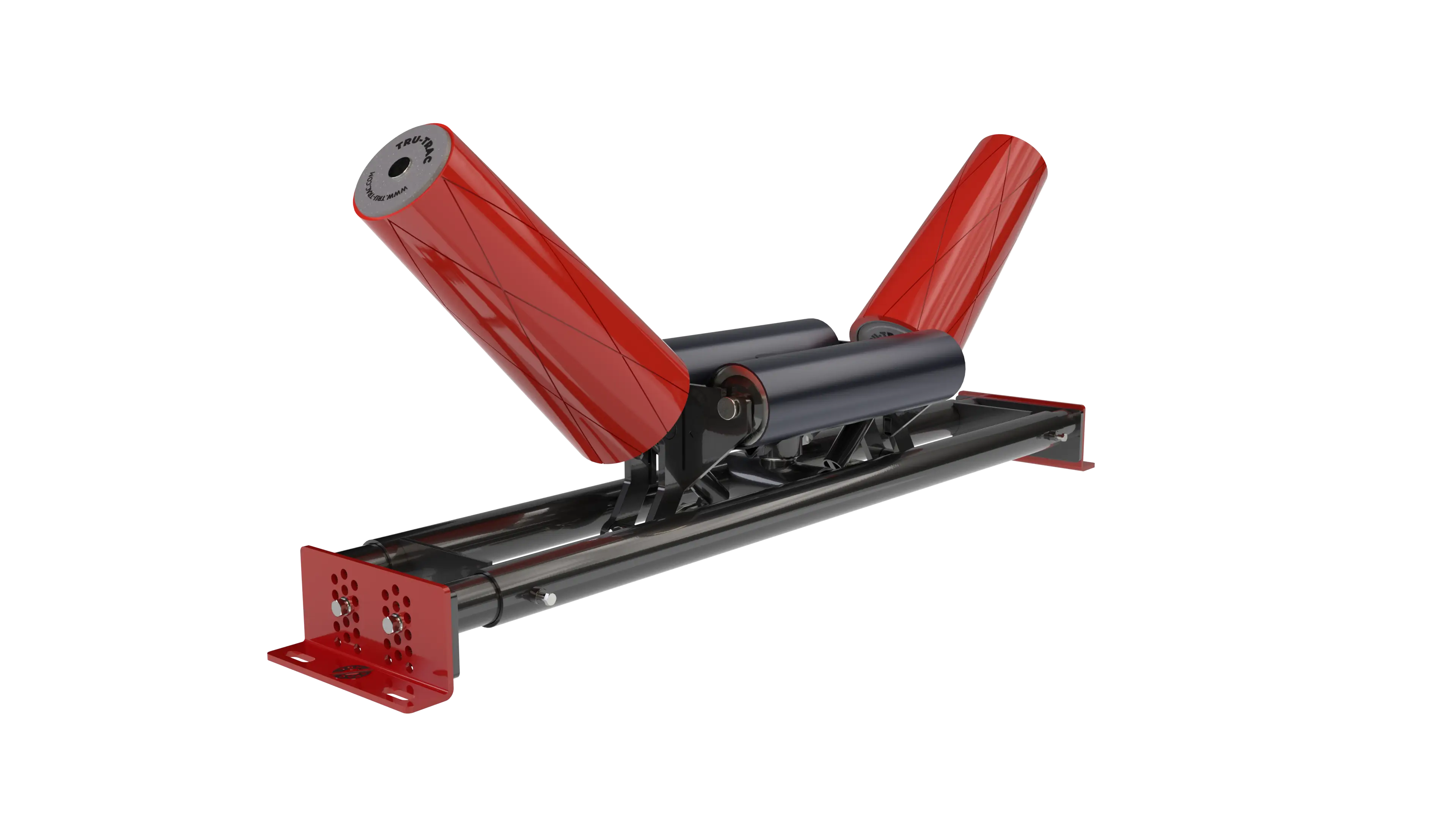

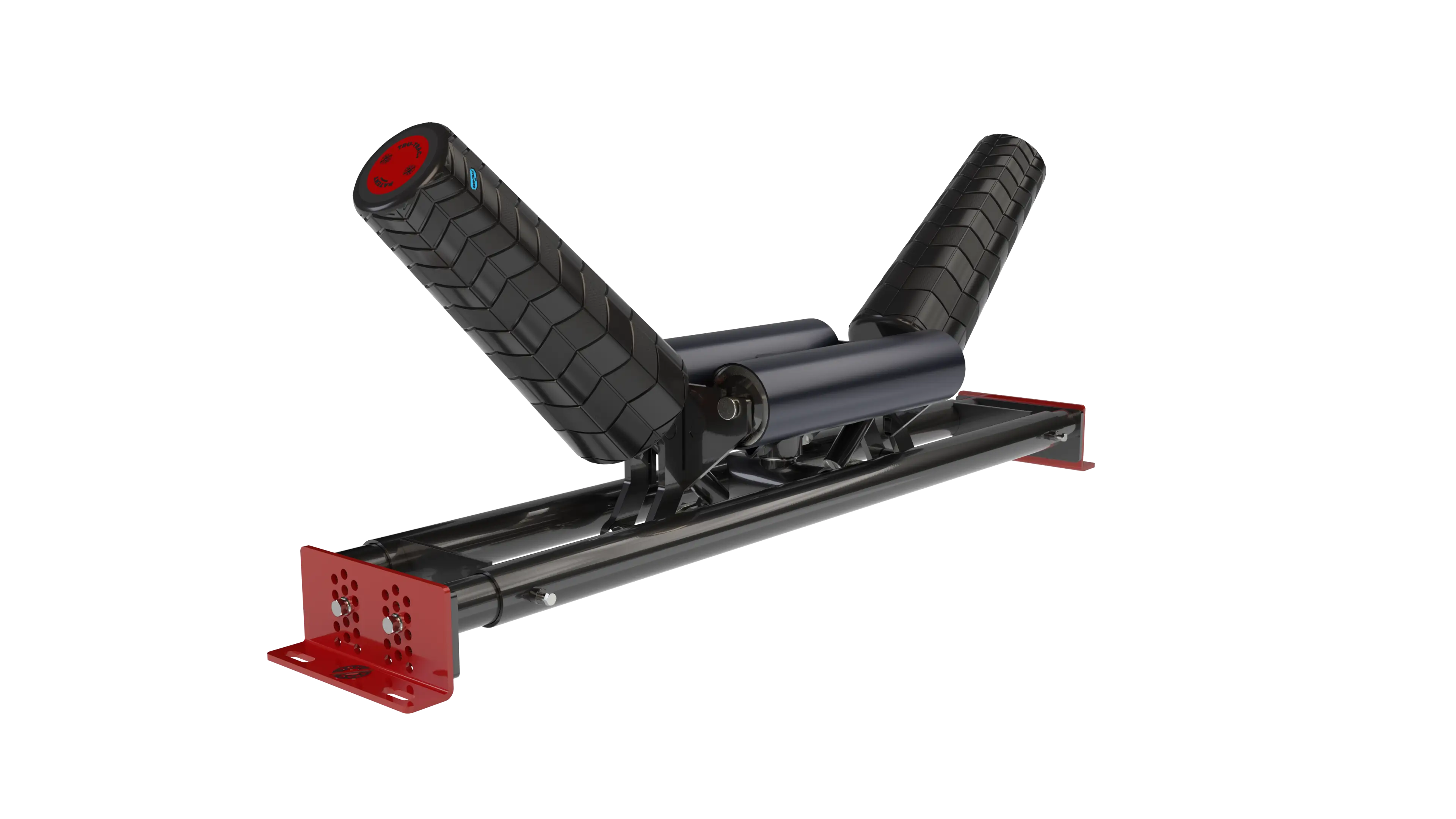

XHD / EXHDApex Trough Tracker XHD / EXHD
For severe-duty carry-side applications where tracker life and performance are critical.
- Severe-duty environments
- High-risk mistracking
- Heavy-duty operating envelope
View product

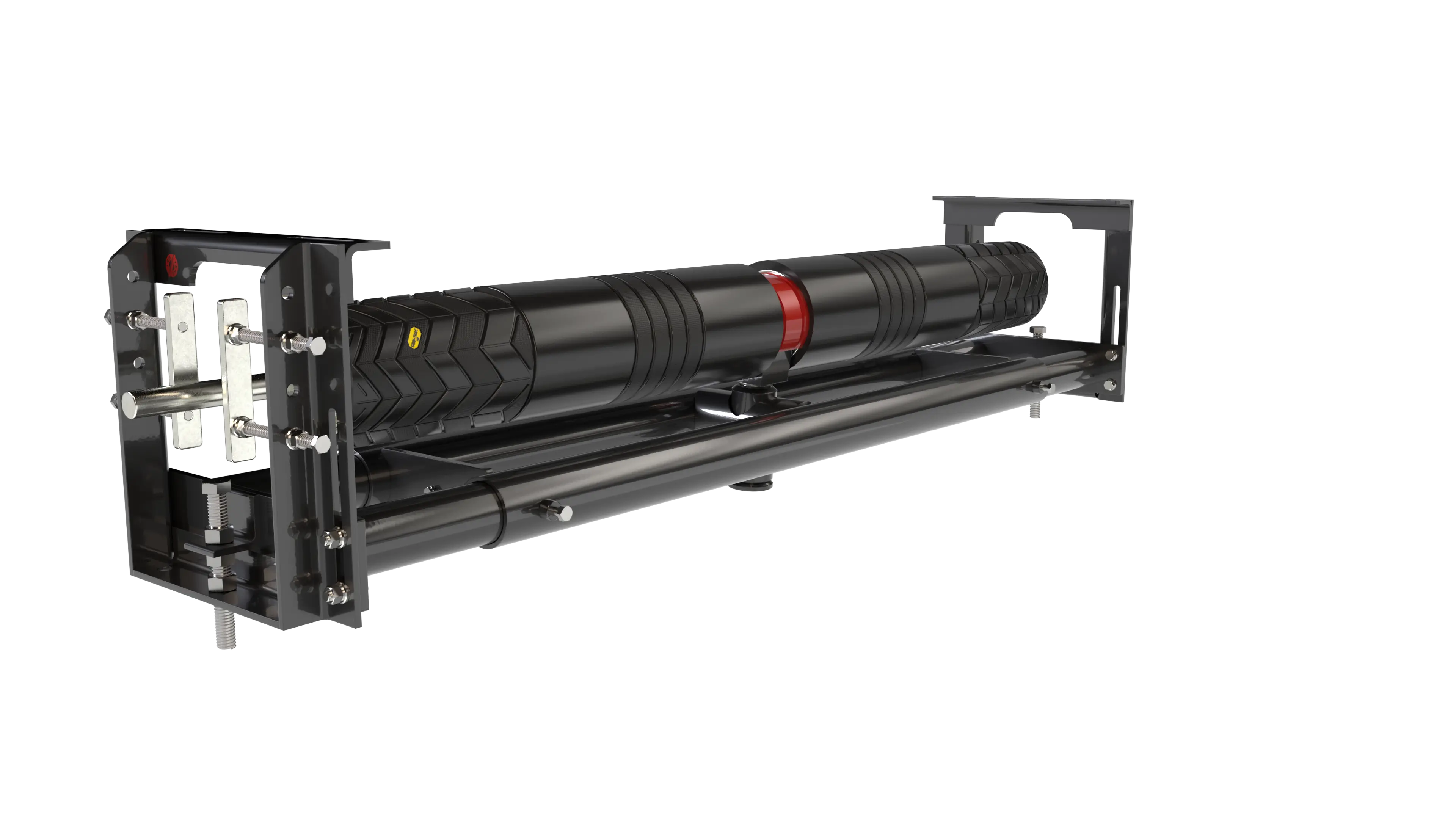

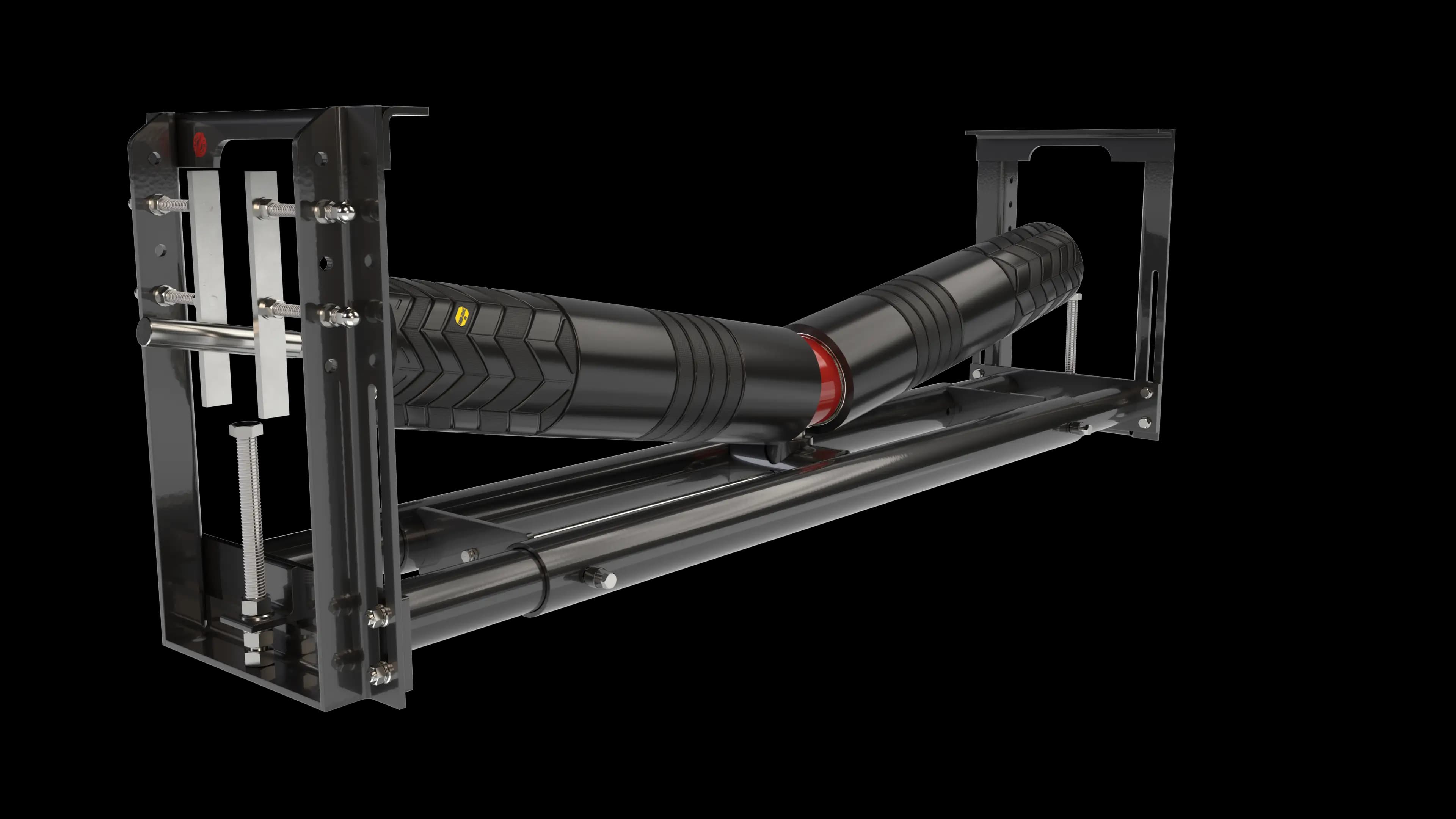

HDApex Flat Return Tracker HD
Return-side correction for demanding return belt applications.
- Return-side mistracking
- Tail pulley protection
- Belt contamination risk
View product

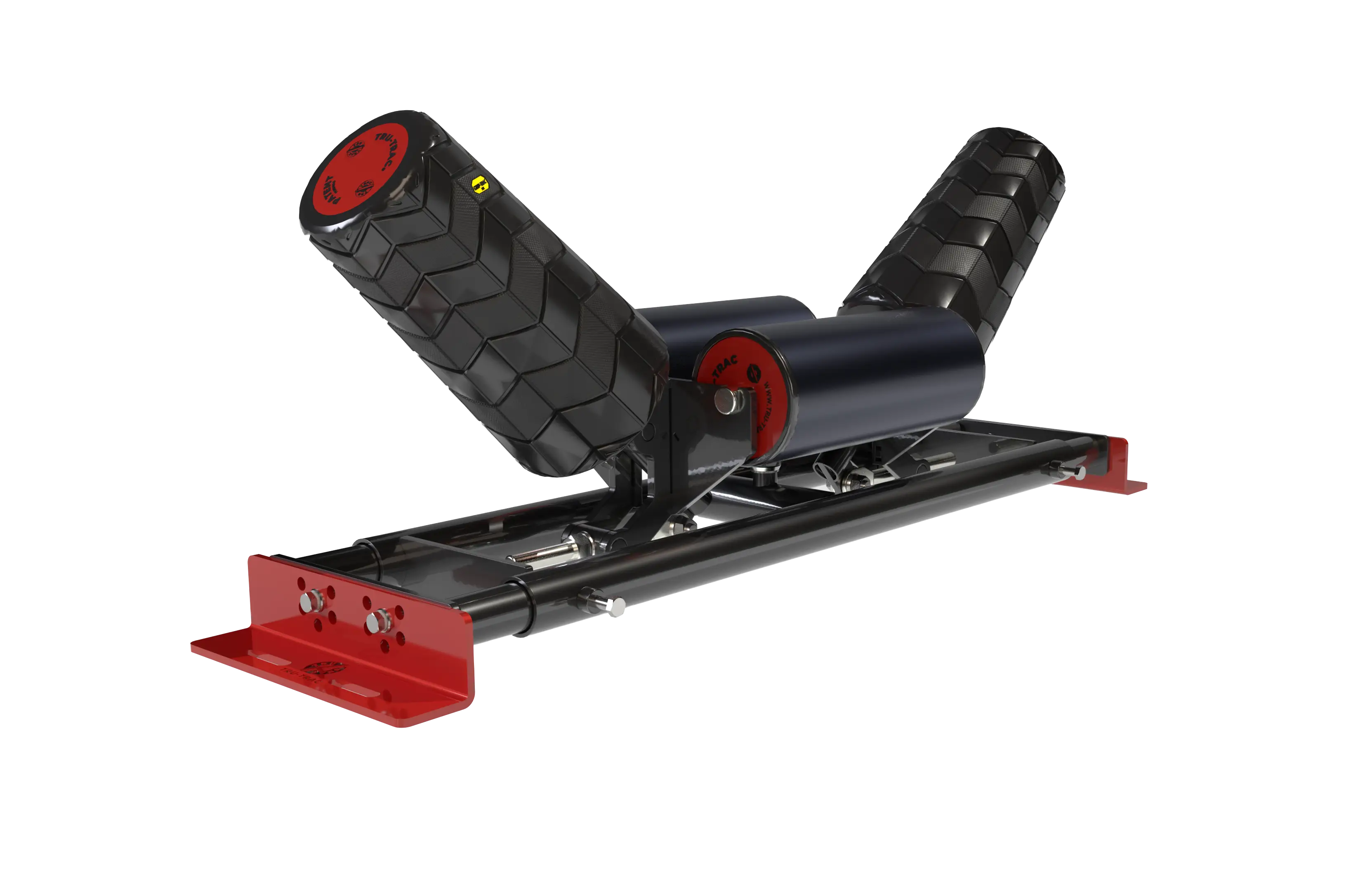

04 / Apex Architecture
The architecture, up close.
Apex combines adjustable wing roller geometry, enhanced centre pivoting and compact mounting architecture to support controlled mechanical correction in demanding conveyor applications.
Detail 03
Lagging detail
Premium lagging options are selected according to material type, abrasion exposure, operating duty and the required tracking response.
GRIP-TRAC® R-FRAS
Fire-resistant rubber lagging
FRAS-rated rubber compound designed to support high grip, abrasion resistance and reliable performance in demanding applications.
06 / Where Apex fits
Where Apex-level performance matters most.
Apex is built for applications where tracking performance, installation practicality and lifecycle reliability matter: hooded conveyors, tripper cars, restricted structures, high-duty belts, abrasive materials and sites where mistracking cannot be allowed to become routine.
01

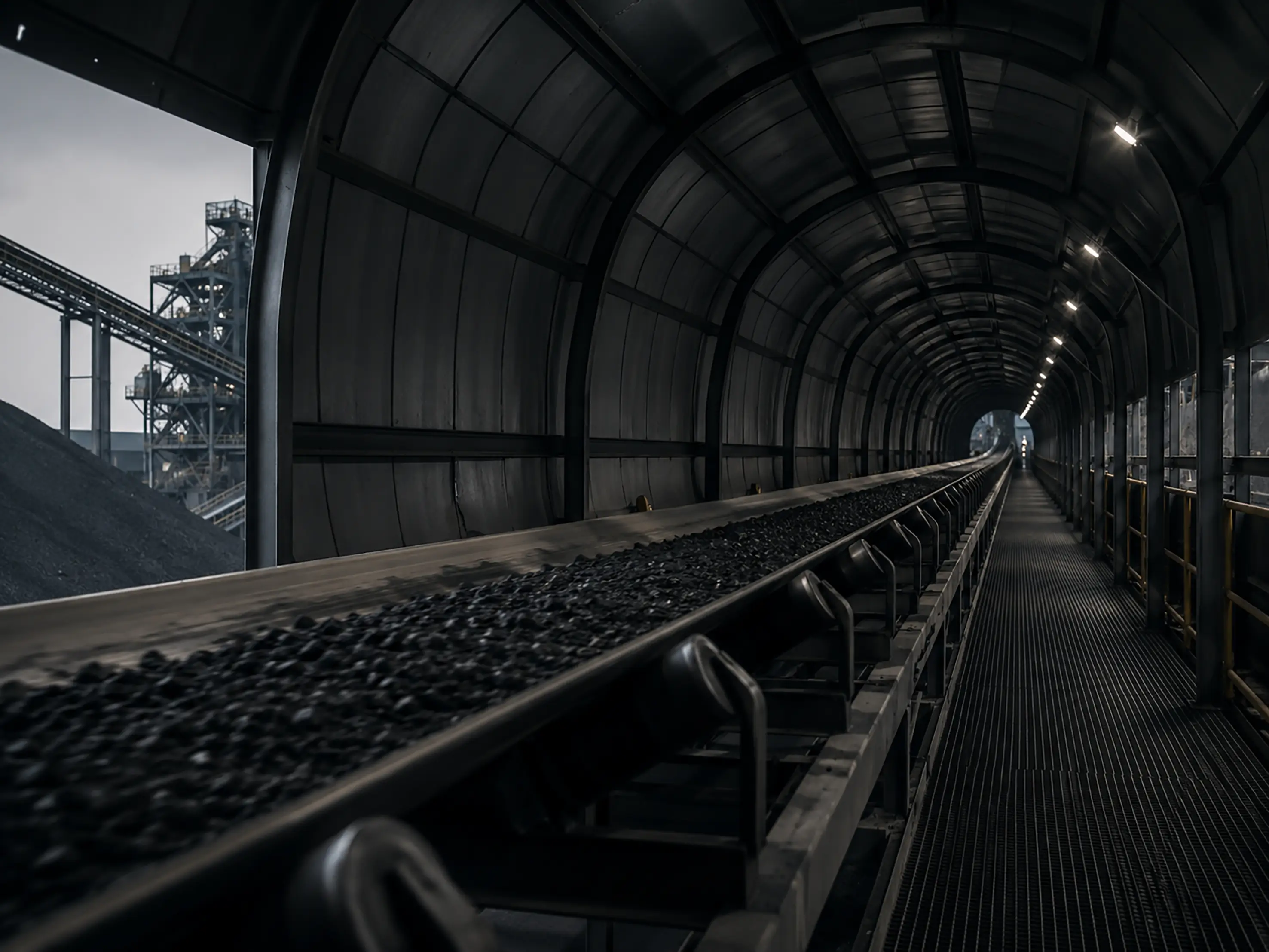

Hooded conveyors
Restricted clearances where standard tracker geometry is difficult.
02

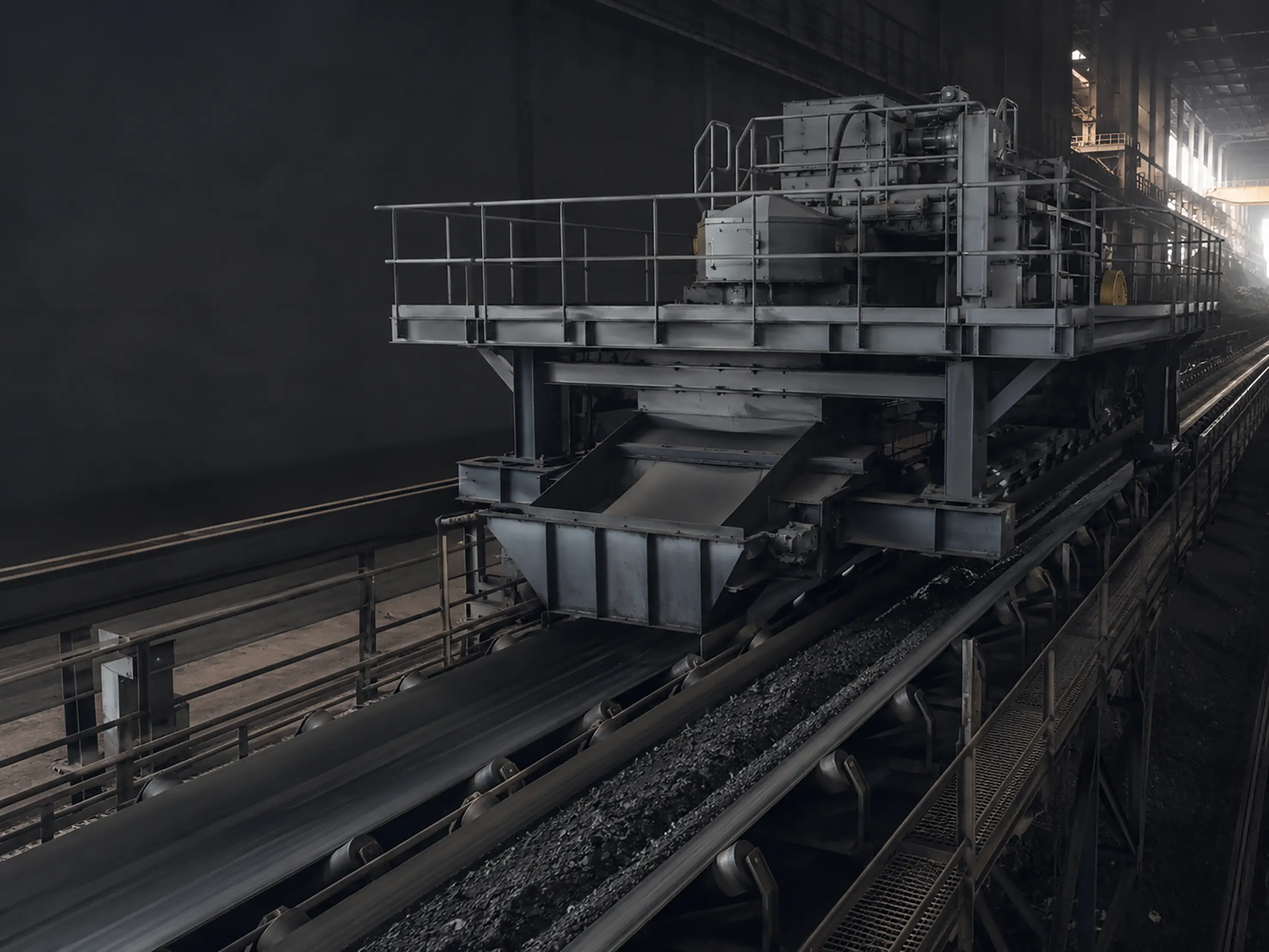

Tripper cars
Moving structures where compact, autonomous correction is required.
03

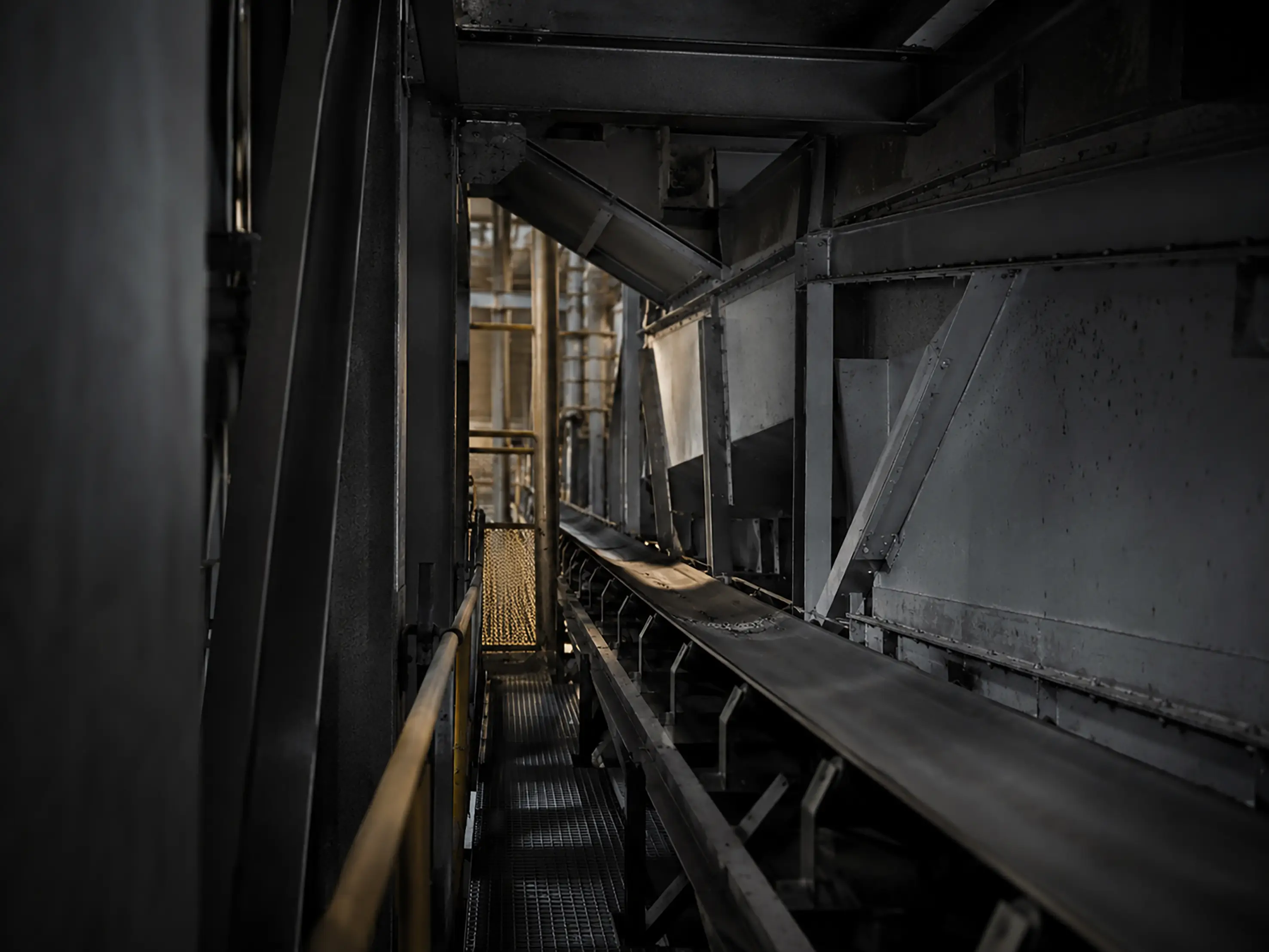

Restricted structures
Limited available space, retrofits and structural constraints.
04

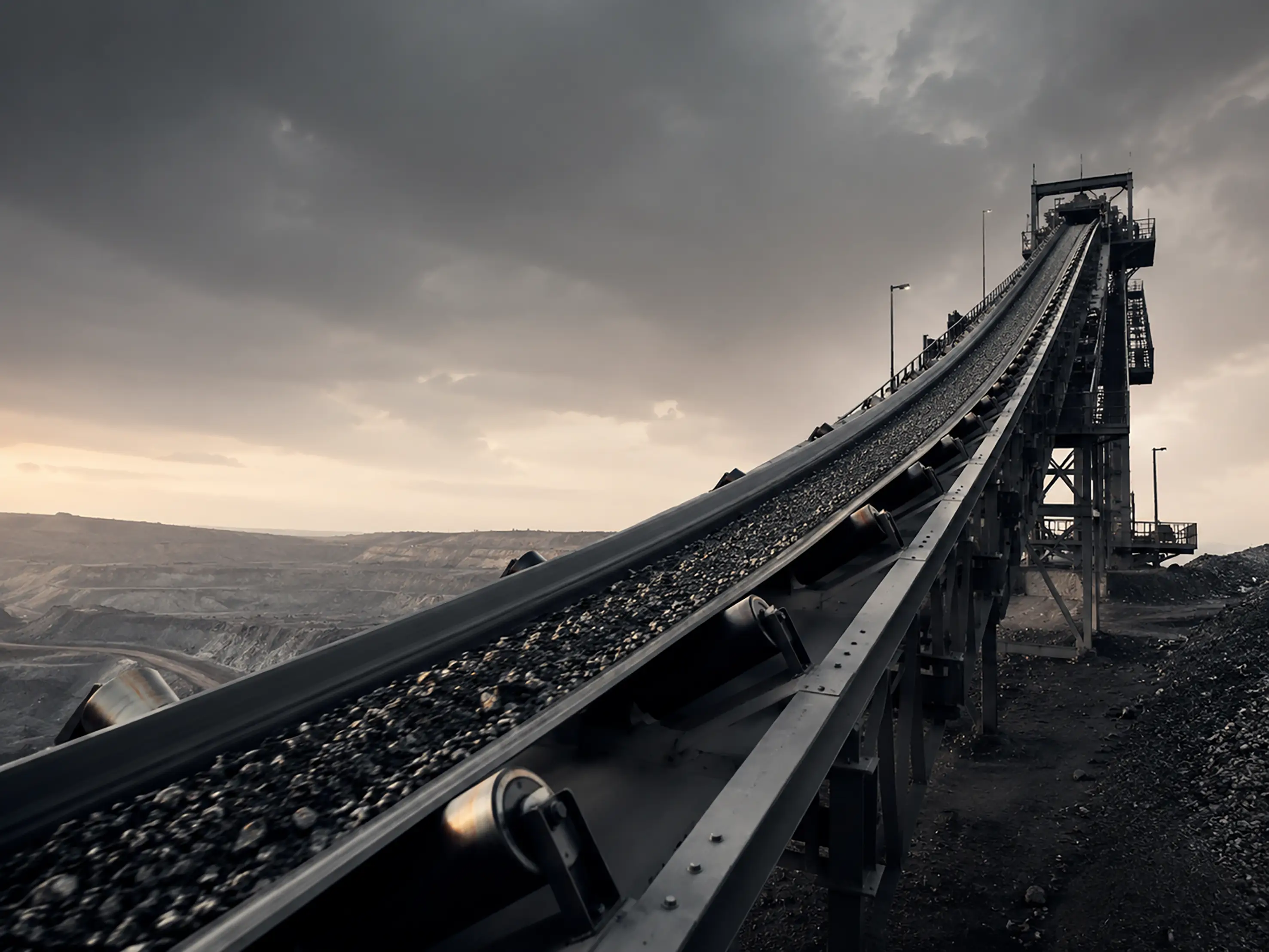

High-duty belts
Wider belts, higher speeds, higher tonnage, longer operating hours.
05

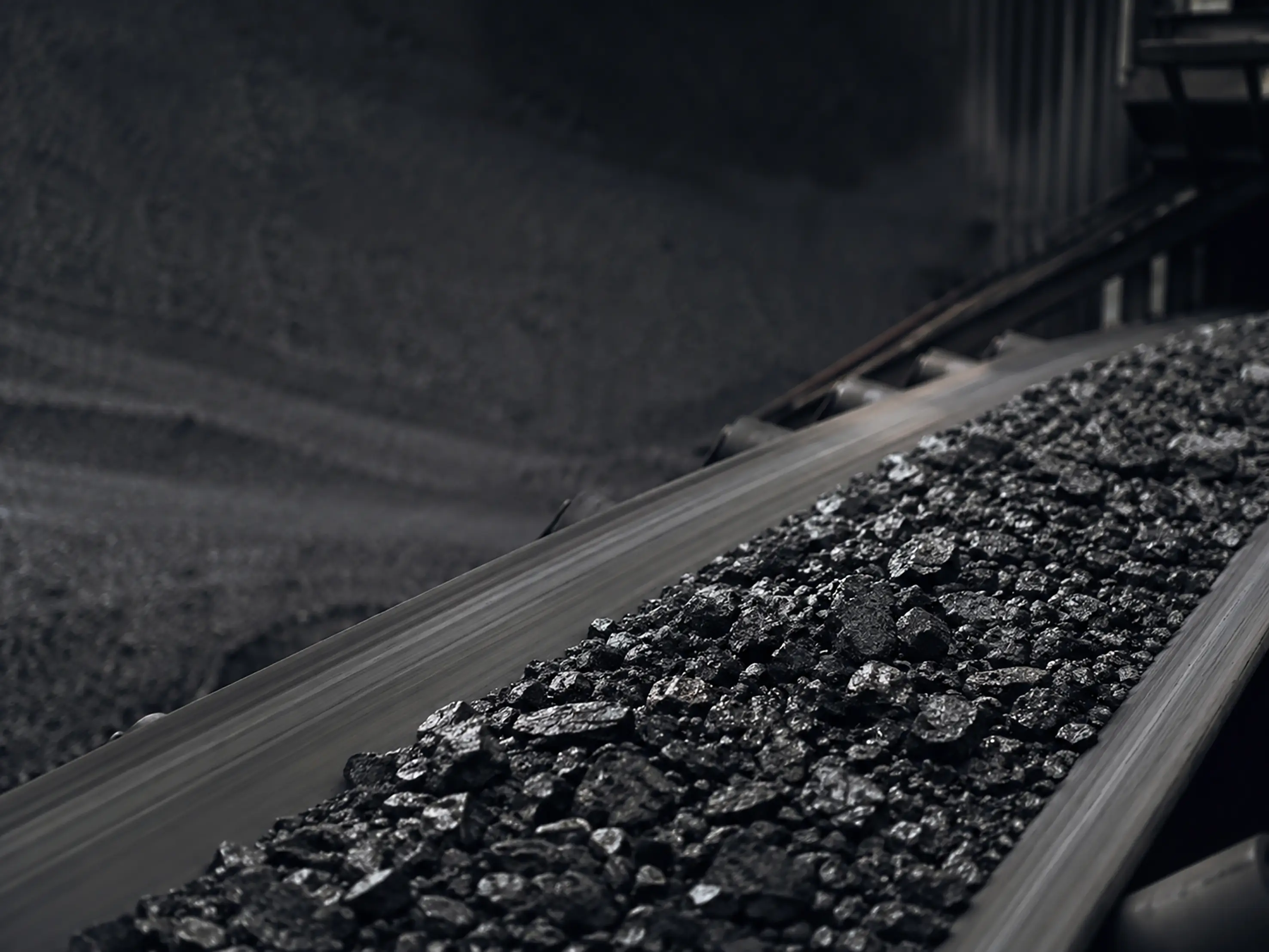

Abrasive materials
Where premium lagging and duty-rated construction protect tracker life.
06

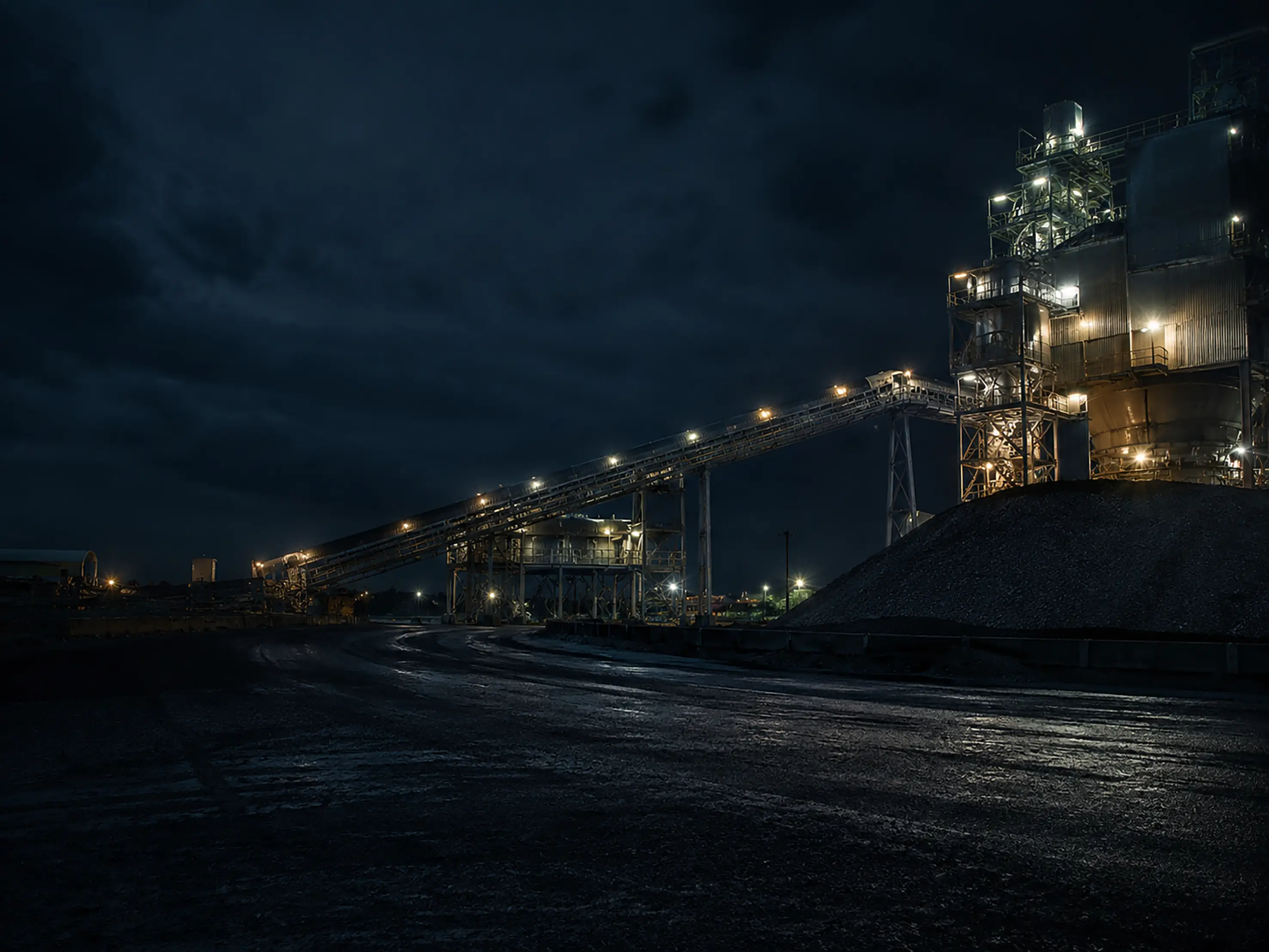

Critical production
Sites where mistracking cannot be allowed to become routine.
07 / Customer statements
Trusted after installation.
Approved customer statements from operations running Apex and equivalent severe-duty Tru-Trac tracking systems.
Belt Tracking
“Tru-Trac helped solve our conveyor misalignment issues and supported reliable operation in demanding mining conditions.”
Coal Mining Operation · Quảng Ninh, Vietnam
Belt Tracking
“The trackers continue to perform well after years of use. The range makes it easier to match the right tracker to different belt conditions.”
Lim · UMS Malaysia
Tracking and Support
“Tru-Trac helped us fix spillage and misalignment in the plant. What stands out is the support — when we hit a problem, they respond fast with something that works.”
Peter · Plant Maintenance · Glencore
Specify Apex for the application that justifies it.
Use the selector for a recommended Apex tier, request an engineering specification for borderline duty, or return to the belt trackers family page to compare against legacy options.
