Belt Cleaners · Secondary · Zone 03
Secondary scrapers install just past the head pulley on the return path, cleaning the thin, sticky and moist residue a primary scraper can't. Tungsten-carbide blades and self-tensioning cushions hold cleaning pressure across the belt.
Titan Secondary Scraper
01 / Scraper architecture
The architecture, up close.
A secondary scraper works the fine residue on the return path, where cleaning pressure has to stay constant across the full belt width. Tru-Trac builds that from tungsten-carbide tips, individually flexing cushions and a serviceable cartridge.
- 01
Tungsten-carbide blade tips
Proprietary carbide grades in an overlapping arrangement for streak-free cleaning; tip profile matched to the belt (V-Tips for vulcanised belts, C-Tips or U-Tips for mechanical fasteners).
- 02
Self-tensioning cushions
Impact-absorbing rubber cushions let each blade flex individually and hold a constant effective force against the belt; two-way cushions are available for reversing conveyors.
- 03
Slide-out service cartridge
Blades swap out and inspect without dismantling the mount, cutting downtime.
- 04
Bolt-up tensioner
Simple push-up / pull-up adjustment with a visual tension check; HD versions carry the load in high-speed, high-tonnage duty.
- 05
Optional water spray
Softens sticky or moist carryback where dry cleaning alone can't hold performance.
02 / The range
The secondary range, by duty.
Names, blade platforms, CEMA classes and envelopes are from the catalogue; final specification is confirmed by Tru-Trac engineering.
Secondary scrapers

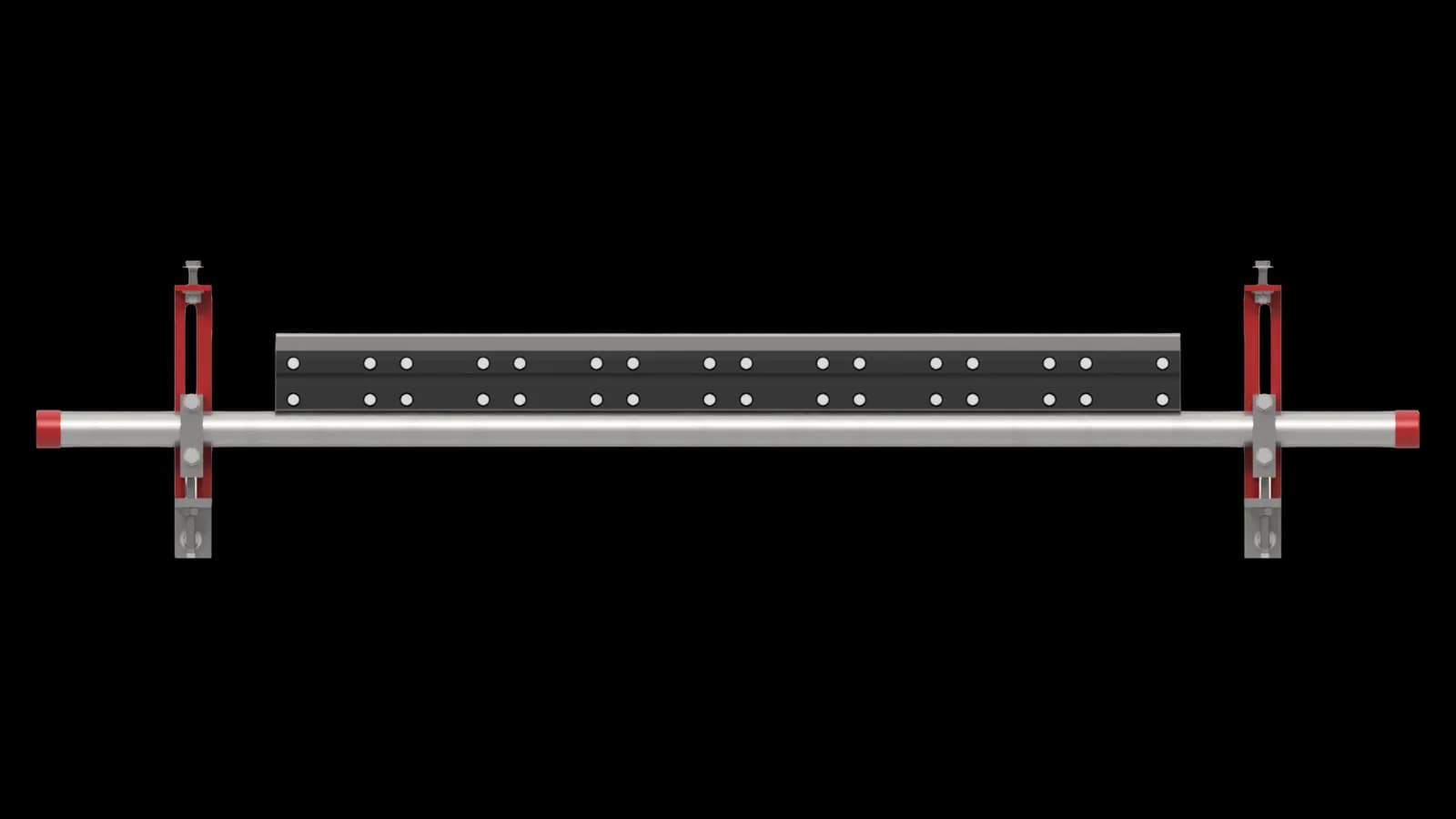

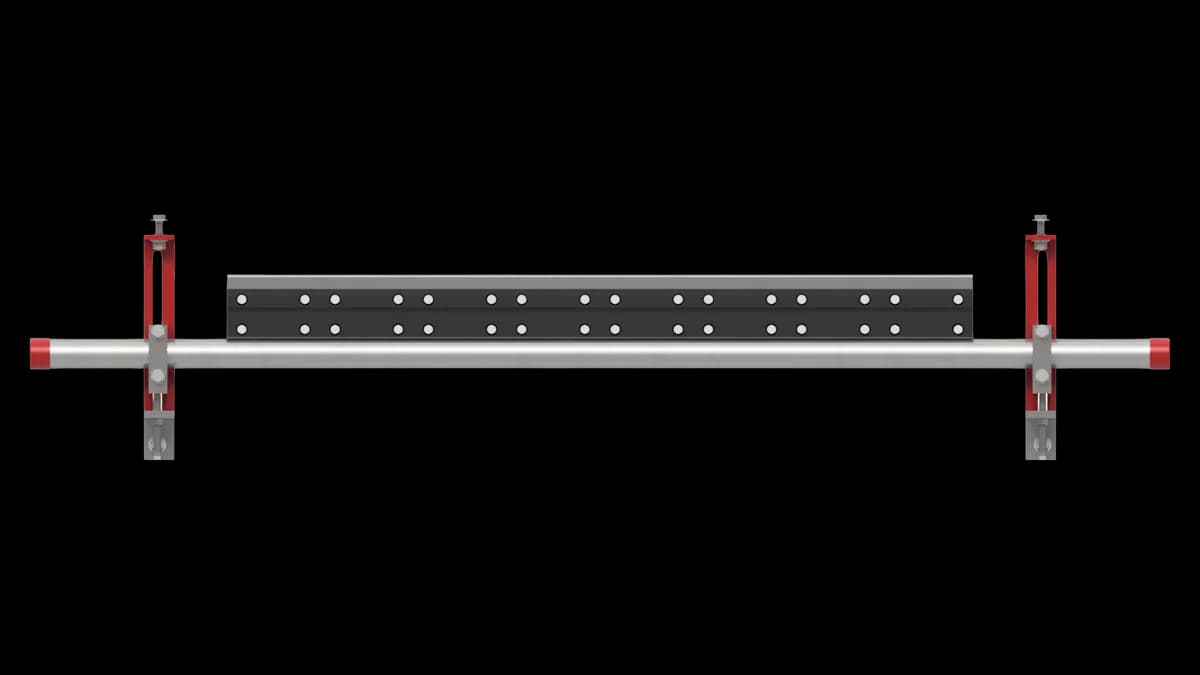

Titan Secondary Scraper
Blade: 100 mm segmented tungsten carbide (Titan Tip) · single or double shaft
- Belt width: 450–1200 mm.
- Max belt speed: 2 m/s.
- Reversible belts: yes; suits mechanical joints.
- 150 mm tensioned segmented blades for uniform cleaning pressure; compact for tight spaces.
- Bolt-up tensioner (push-up / pull-up); single or double Titan for high-carryback belts.

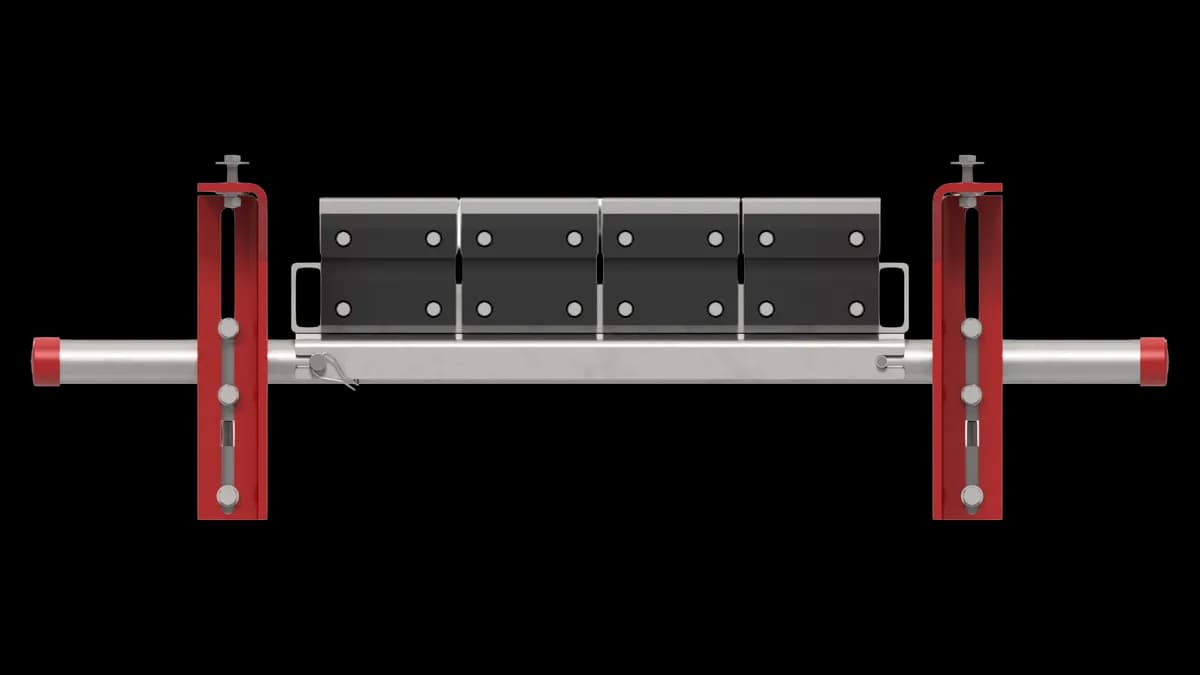

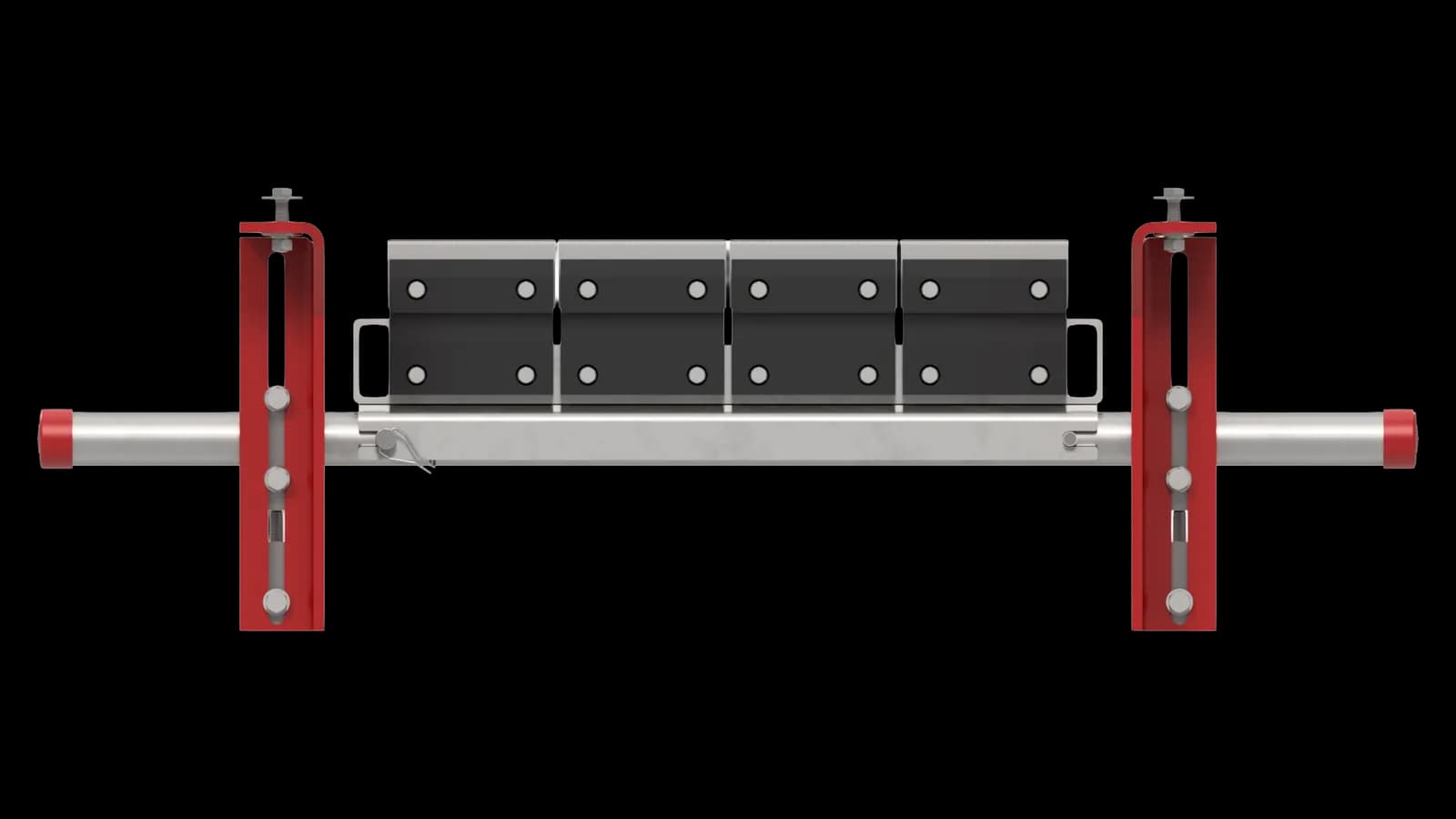

Toro Reversible Secondary Scraper
Blade: tungsten cartridge, 140 mm (Toro U-Tip / Titan Tip) · CEMA Class 3 (Bolt-Up) / Class 4
- Belt width: 450–2400 mm.
- Max belt speed: 5 m/s.
- Reversible belts: yes — two-way rubber cushions for shuttles, trippers and roll-back conveyors.
- Slide-out service cartridge for easy blade change.
- Applications: aggregate, cement, coal-fired power, mineral mining, wood processing, recycling.

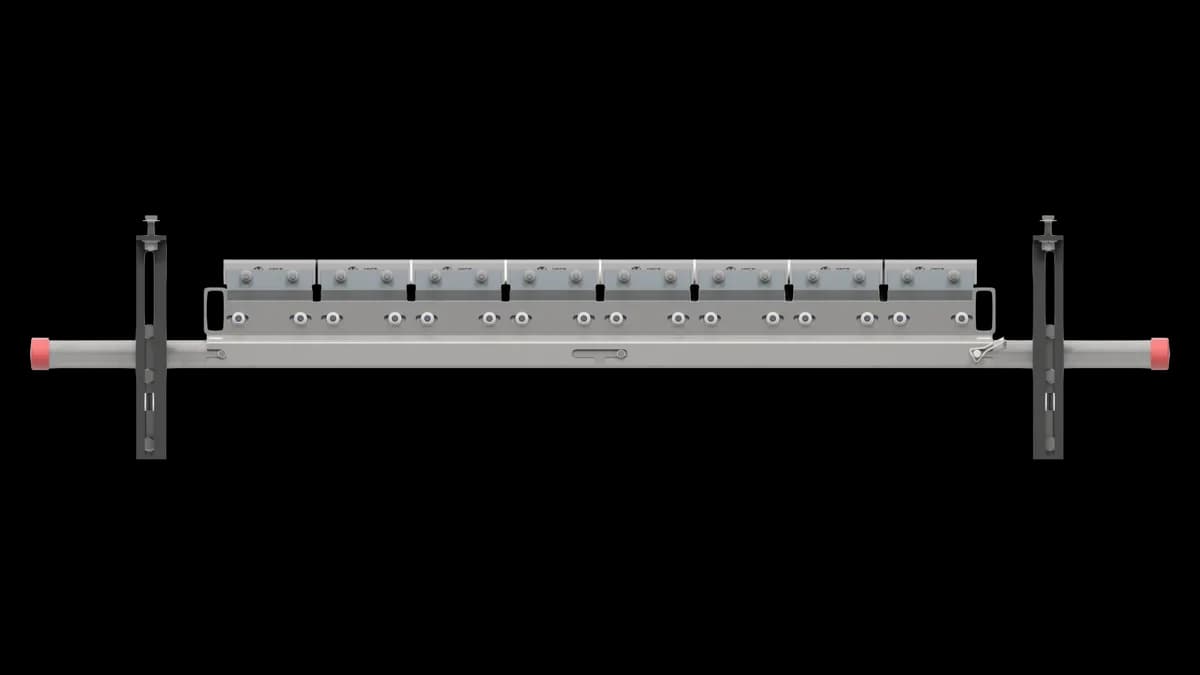

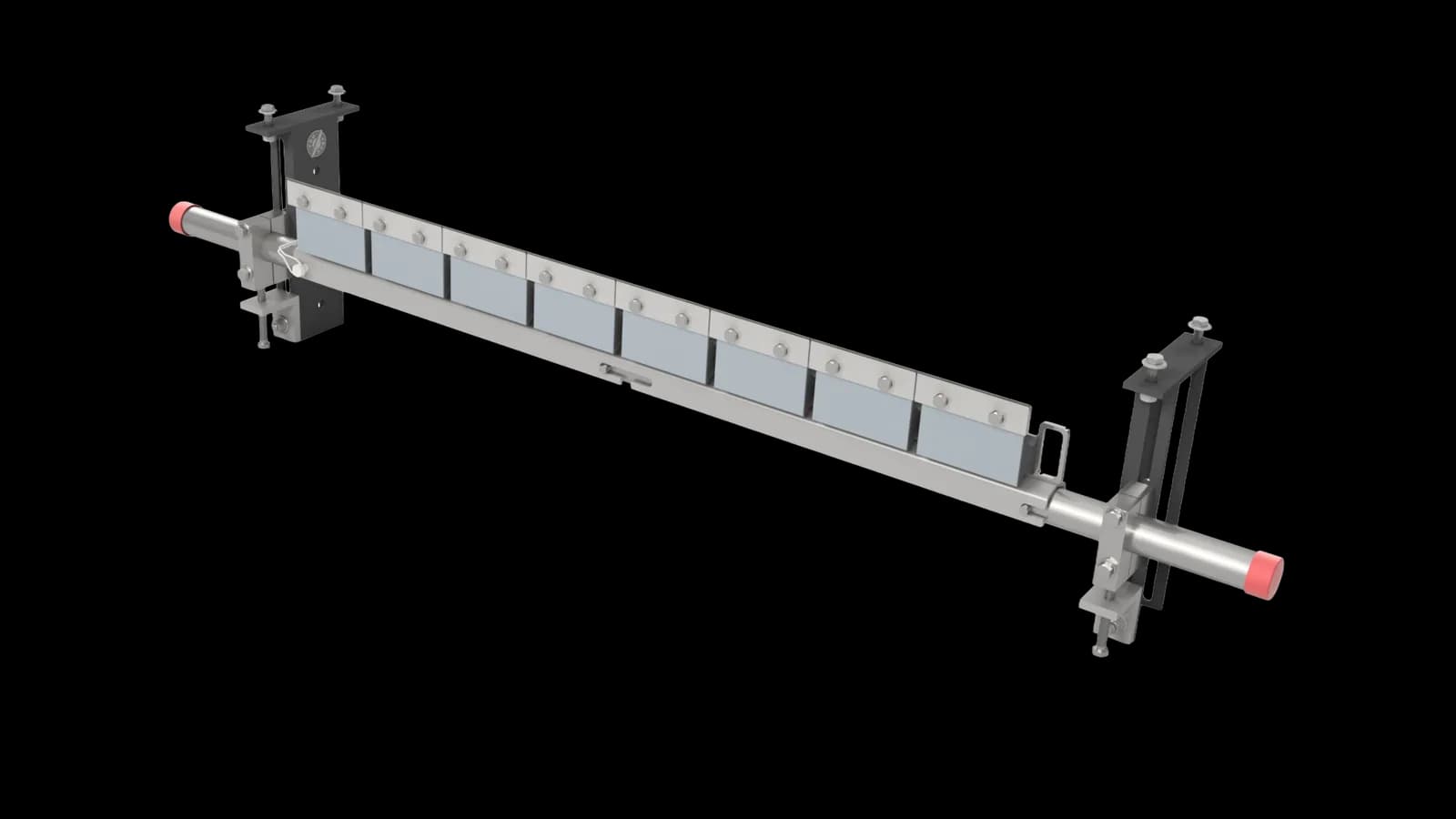

Razorback Secondary Scraper
Blade: replaceable tungsten carbide (V-Tip / C-Tip / U-Tip) · CEMA Class 3 (Bolt-Up) / Class 4
- Belt width: 450–2400 mm.
- Max belt speed: 5 m/s.
- Reversible belts: no.
- V-Tips for vulcanised belts; C-Tips or U-Tips for belts with mechanical fasteners.
- Slide-out service cartridge; optional water spray.
- Applications: coal-fired power, hard rock mining, steel mills, iron ore, aggregate & mineral mining.
Razorback HD (MDX) Secondary Scraper
Blade: carbide nickel-chrome MDX tips (V-Tip / C-Tip) with MDX HD reinforced cushions · CEMA Class 5
- Belt width: 450–2400 mm.
- Max belt speed: 6 m/s.
- Reversible belts: no.
- Force-Flex (patent-pending) impact-absorbing, spring-loaded tensioning holds constant cleaning force.
- Slide-out service cartridge; built for high-speed, high-tonnage, aggressive environments.
- Applications: underground & hard rock mining, metals (copper/gold), steel mills, iron ore, bulk shipping terminals, coal-fired power.

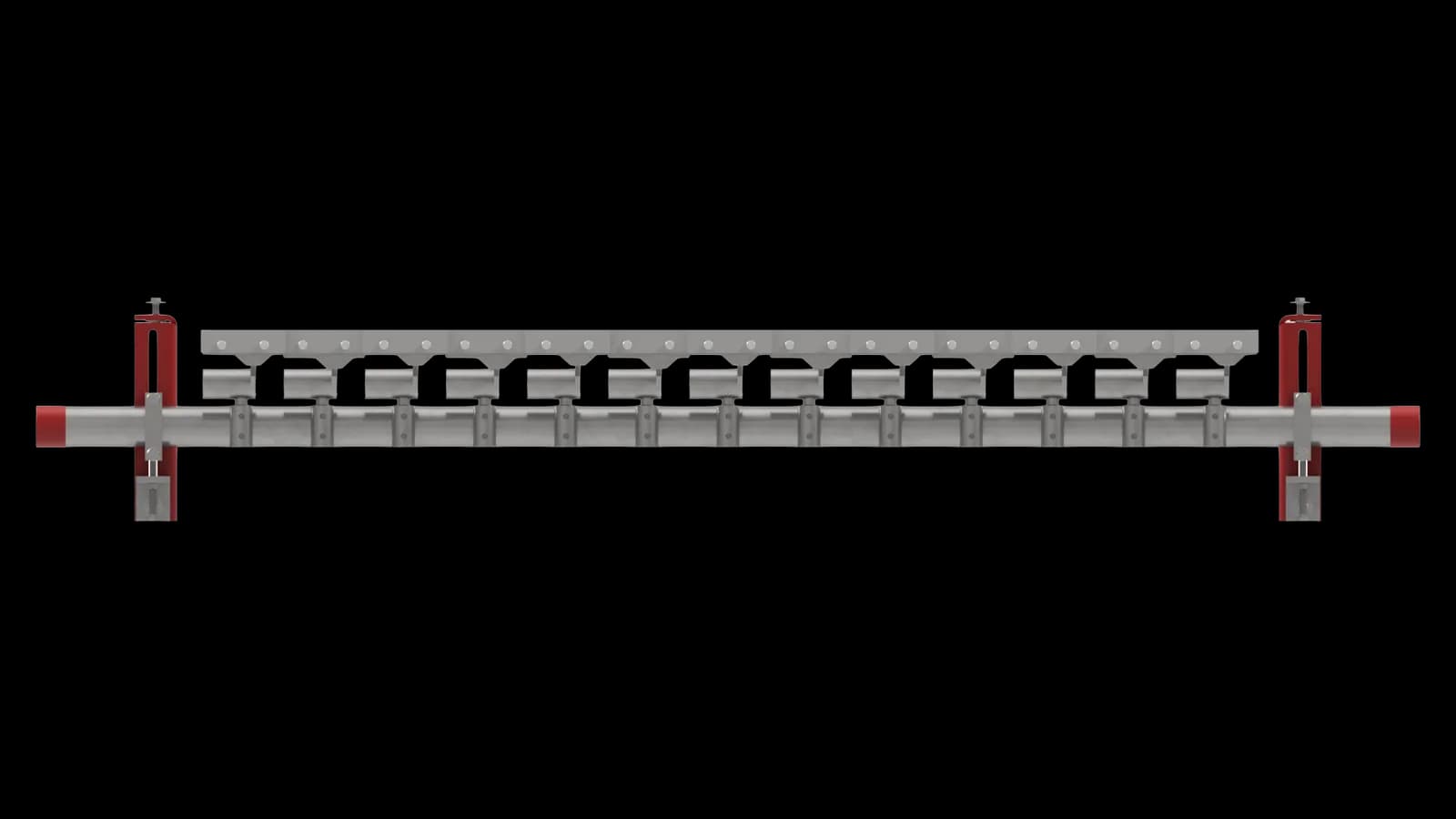

BC-2 Secondary Scraper
Blade: overlapping tungsten carbide · CEMA Class 4
- Belt width: 450–1800 mm.
- Max belt speed: 4 m/s.
- Reversible belts: no.
- Patent-pending self-tensioning stainless-steel spring; HD bolt-up tensioner for simple, accurate adjustment.
- Mounts at 6 o'clock for optimal cleaning; rust-resistant heavy-duty design.
- Applications: aggregate, cement, hard rock mining, coal-fired power, steel mills, iron ore & mineral mining.

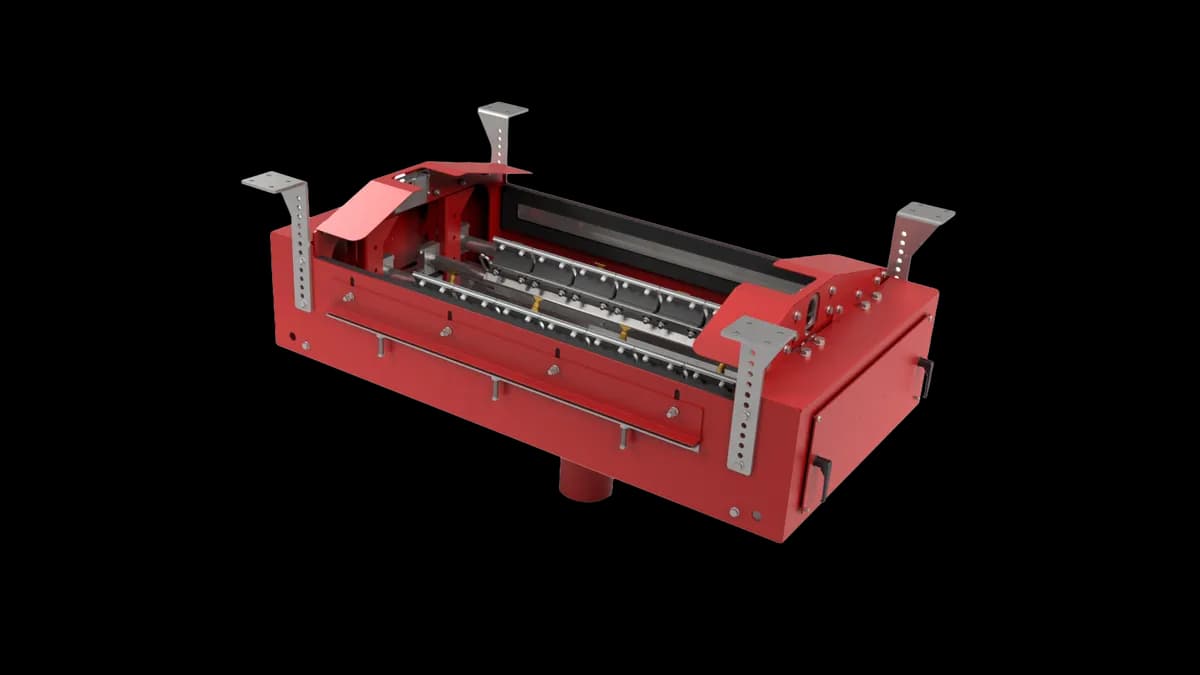

Scraper Wash Box
Enclosed stainless-steel box: pressure rollers, spray bars and Razorback scrapers · CEMA Class 3, 4 & 5
- Max belt speed: 5 m/s.
- Water spray softens carryback while cleaning pressure is maintained; fully enclosed to contain wash fluid and carryback.
- Removable service doors; custom box sizes on request.
- Applications: coal-fired power, bulk shipping terminals, coal preparation, underground & hard rock mining, steel mills, iron ore, mineral mining.
Specialist cleaning

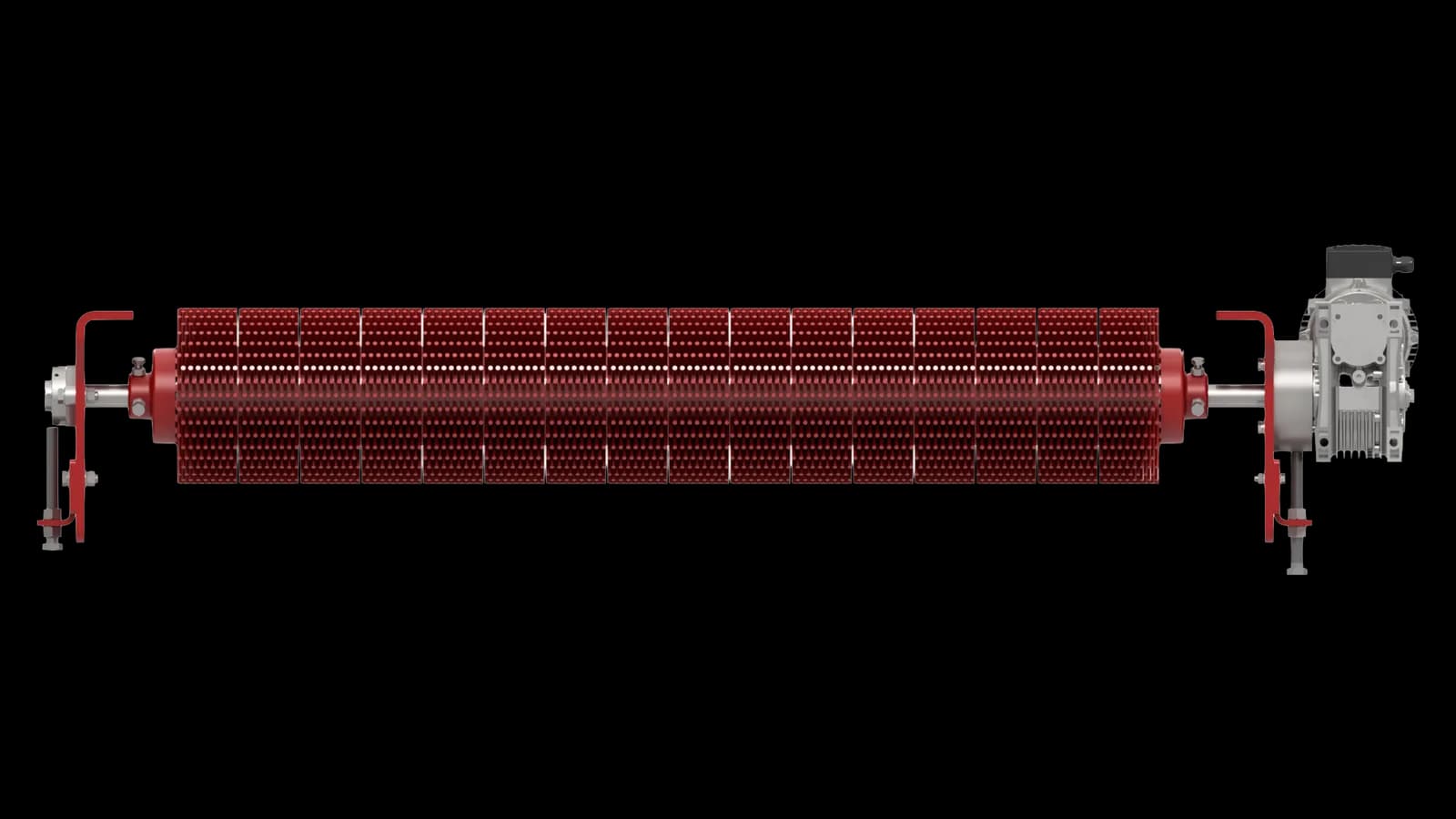

Motorised Brush Scraper (Rubber / PU)
- Max belt speed: 5 m/s.
- Available: 450–2200 mm.
- Motor: 1.5 hp, 1460 rpm, 230/400 V, 50/60 Hz; brush OD 230 mm.
- Replaceable rubber / polyurethane segments; gentle sweeping action for fines, worn or ribbed belts; operates only while the belt moves.
- Applications: fines, wood dust, cement dust, salt, sugar, fertilizer, wet sand, carbon black.

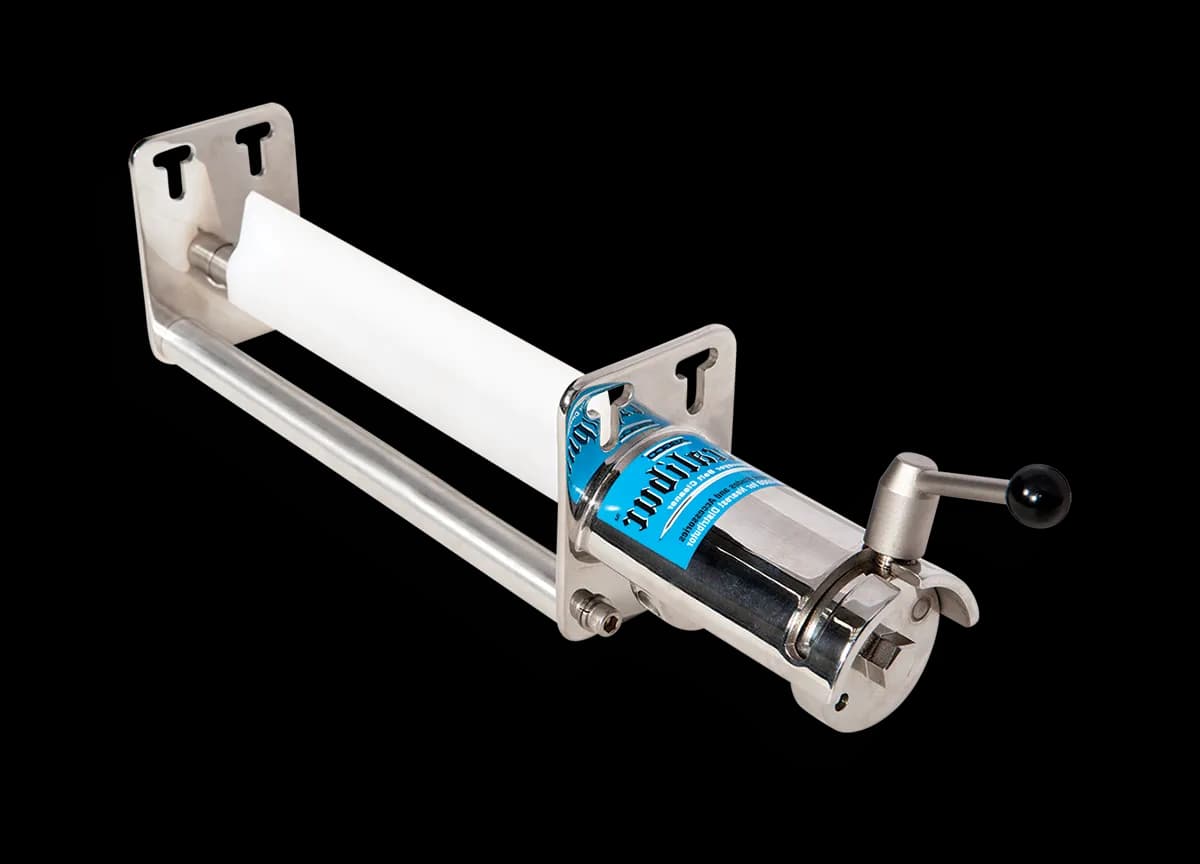

Excalibur Food-Grade Scraper
- For light-duty thermoplastic and modular plastic table-top belting.
- FDA-compliant materials; 300-series electropolished stainless steel.
- Snap-on/off blade with torsion-spring tensioner; tool-free blade change.
- Blade materials: UHMW, FDA oil-impregnated nylon, dual-durometer polyurethane.
- Mounts as a primary or secondary scraper.
